OKUMA CAPTAIN L-470 BIG BORE CNC TURNING CENTER

Stock Number P11944

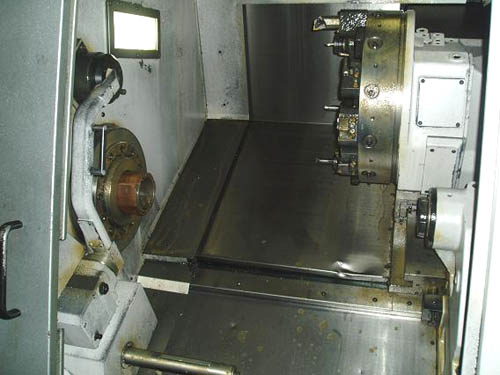

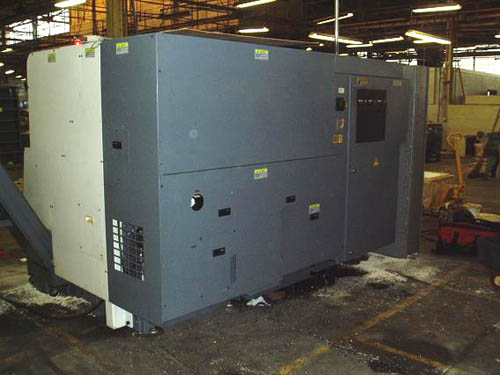

ACTUAL PHOTOS

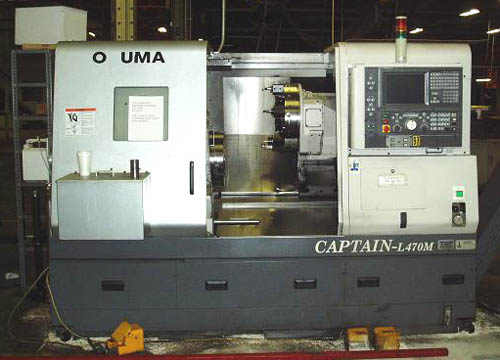

OKUMA CAPTAIN "Big Bore" L-470 CNC TURNING CENTER w/ LIVE TOOLING

Model L470-650BBM, New 2006

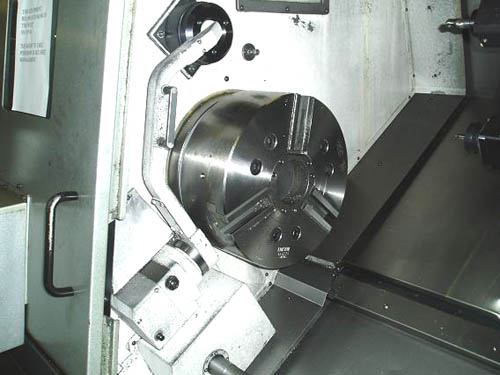

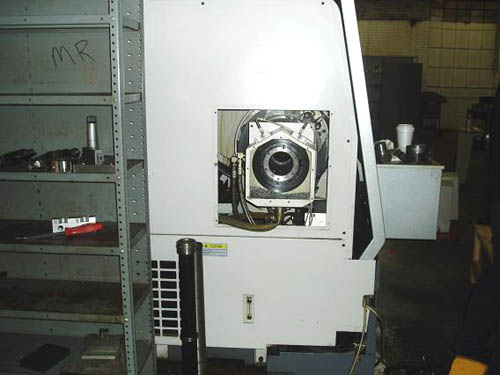

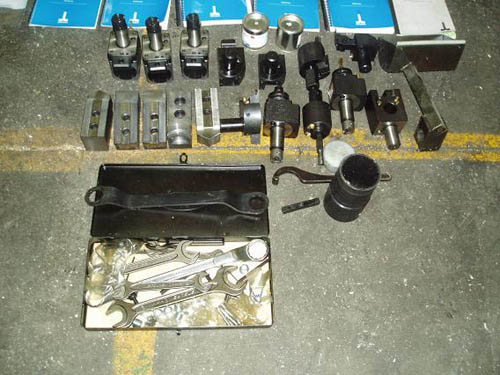

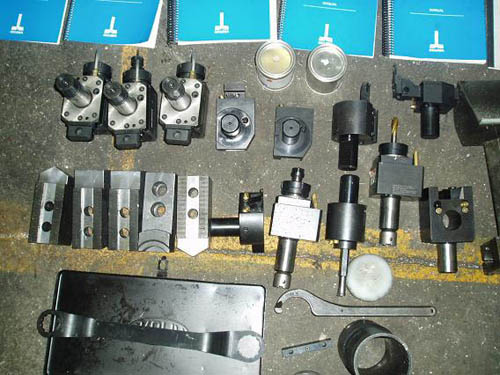

EQUIPPED WITH:: Okuma P100 CNC Control w/CRT, Big Bore Spindle Bore Option, Live Tooling, Parts Catcher, 15" 3-Jaw Chuck, Barfeed Interface, Tailstock, Auto Backlash Compensation, Coolant System, Tooling Package, and Chip Conveyor.

CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 24.4"

Maximum Turning Diameter................................ 16.53"

Maximum Turning Length.................................. 25.59"

Chuck Size.............................................. 15"

Cross Travel (X-Axis)................................... 11.81"

Longitudinal Travel (Z-Axis)............................ 26.56"

Feed Range (Infinitely Variable)........................ .1-400 IPM

Rapid Traverse Rate (X-Axis)............................ 787 IPM

Rapid Traverse Rate (Y-Axis)............................ 984 IPM

Number of Turrets....................................... 1

Spindle Bore............................................ 4.33"

Spindle Nose............................................ A2-11

Spindle Speed Range (1 RPM Increments).................. 28-3000 RPM

Spindle Horsepower...................................... 30 HP

Approximate Machine Dimensions.......................... 108" x 75"

Approximate Machine Height.............................. 79"

Approximate Machine Weight.............................. 11,800 LBS

CONDITION: Machine Appears to be in Excellent Condition !
