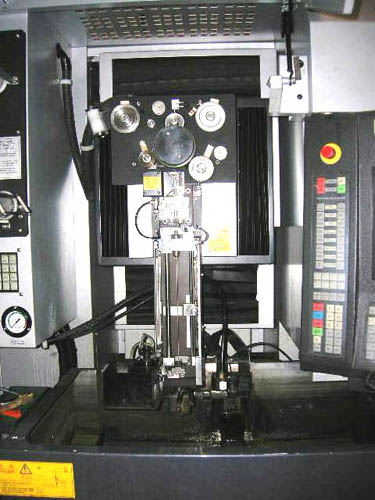

SODICK AZ300L-MDC WIRE
TYPE ELECTRIC DISCHARGE MACHINE
Model AQ300L-MDC, New 2007
DESCRIPTION: The Sodick AZ300L is the
Sodick Wire EDMedical Device Center
with Indexing Capability (WS-4P Auxilliary Axis Automatically Indexes the Work
Piece) w/ Automatic Wire Threading. The AQ300L also has Linear Motor Drives,
Glass Scale Feedback, On-Board Programming, Anti-Electrolysis and Fine Finish
Circuit for Ultra Accuracy and Finish.
NOTE: This Machine Has Only 1700 Hours!
EQUIPPED WITH: Sodick LN1W CNC Control w/
15" Touch Screen CRT, Onboard Programming, Import and Convert DXF Files,
Auto Selection of Cutting Conditions & Offsets, Help Screen, Maintenance
Alerts, WS-4P Indexing Axis, Automatic Wire Threader, Linear Drive Motors, Glass
Scale Feedback, Anti-Electrolysis Circuit, Corner Control, Chiller, Auto Power
Recovery.
CATALOGUE SPECIFICATIONS:
X-Axis Travel......................................... 12"
Y-Axis
Travel......................................... 8"
Z-Axis Travel......................................... 8"
U V Axis
Travel....................................... 3.1" x 3.1"
Wire Diameter......................................... .006" -
.012"
Table Workload
Capacity............................... 660 LBS
Approximate Machine Dimensions........................ 54" x 96"
CONDITION: Machine has Only 1700
Hours on it and Appears to be in
Excellent Condition!
