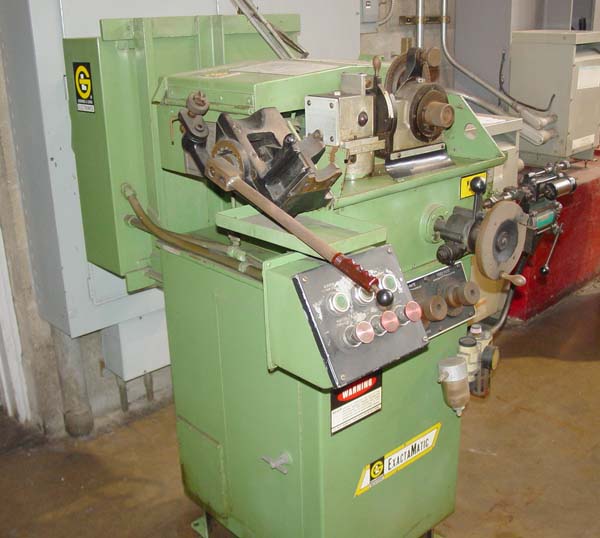

GIDDINGS & LEWIS WINSLOW 'EXACTAMATIC'
DRILL POINT GRINDER
Model HC, New 1980, S/N 940-381-80
Stock # K11340
EQUIPPED WITH:
(5) Basic Drill Point Design Capabilities ( Conventional, Helical,
Racon, Split Point, Four Facet ), Automatic Air Operated Infeed
Attachment, Fully Automatic, Diamond Wheel Dresser, Drill Splitter
Attachment, Some Tooling, Built-in Coolant System.
Drill Capacity
Conventional Point............................. .0625" to 1.5" Dia
Helical Point.................................. .0625" to 1" Dia
Racon Point.................................... .0625" to 1" Dia
Split Point.................................... .0625" to .5" Dia
Four Facet Point............................... .0625" to 1" Dia
Drill Point Angle Capacity........................ 60 -180 Deg
Grinding Wheel Size............................... 12" x 3/4" x 5"
Spindle Speed..................................... 1800 RPM
Grinding Wheel Motor.............................. 1 HP
Electrics......................................... 230/460/3/60
Approximate Machine Dimensions.................... 62" x 58"
Approximate Machine Height........................ 53"
Approximate Machine Weight........................ 1,450 LBS
