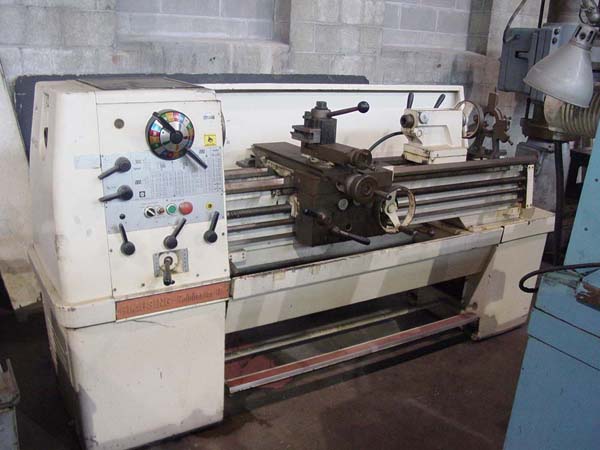

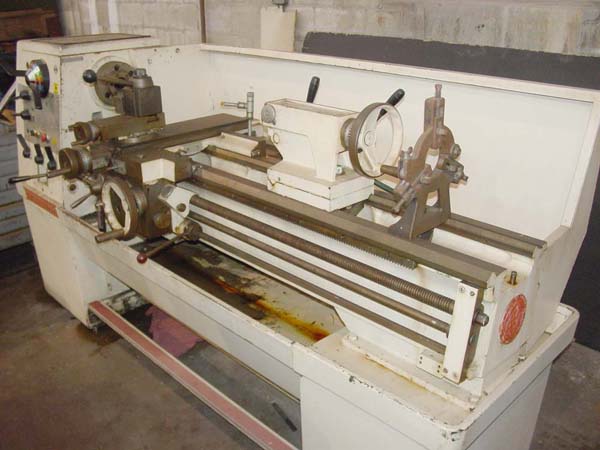

15" X 50" CLAUSING GEARED HEAD ENGINE LATHE
New 1981, S/N 31072
Stock # K11499
EQUIPPED WITH:
Inch/Metric Threading, Taper Attachment, Hardened and Ground Ways,

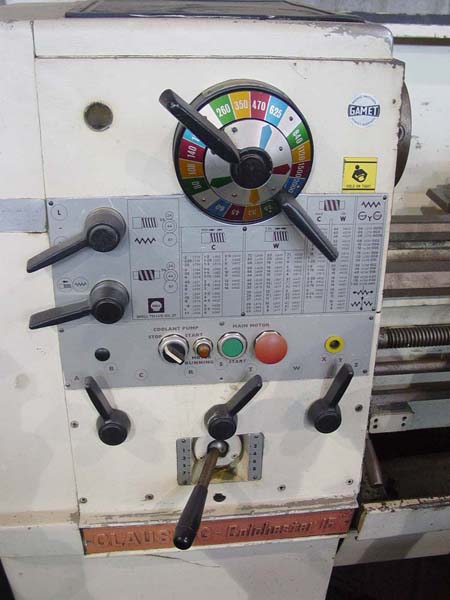

Hardened and Ground Cross Feed Screw, Heavy Duty Geared Headstock with
(16) Spindle Speeds, Automatic Lube System, Full Length Coolant/Chip
Pan, Coolant Pump and Tank.
CATALOGUE SPECIFICATIONS:
Max. Swing Over Bed Ways, Rated...................... 15"
Max. Swing Over Bed Ways, Actual..................... 15-1/4"
Max. Swing Over Carriage Wings....................... 15-1/4"
Max. Swing Over Cross Slide.......................... 9-1/2"
Max. Distance Between Centers........................ 50"
Cross Slide Cross Feed Travel........................ 9-1/4"
Hole Thru Spindle.................................... 2-3/16"
Tailstock, Spindle Travel............................ 6-1/8"
Tailstock, Spindle Diameter.......................... 2-5/16"
Tailstock, Spindle Taper............................. #4 MT
(16) Spindle Speeds, Range........................... 25 to 2000 RPM
Carriage Longitudinal Feeds.......................... .0015" to .40IPR
Inch Thread Changes, Range........................... 2 to 72 TPI
Metric Thread Changes, Range......................... .2 to 14 TPMM
Main Motor, Horsepower/RPM .......................... 7.5 HP/ 1800 RPM
Electrics ........................................... 230/480/3/60
Approximate Machine Dimensions ...................... 96" x 38"
Approximate Machine Height .......................... 49"
Approximate Machine Weight........................... 3,300 LBS
CONDITION: From a Large Aerospace Company's Fly-in Repair Facility.
Machine Appears to be in Very Good Condition !
