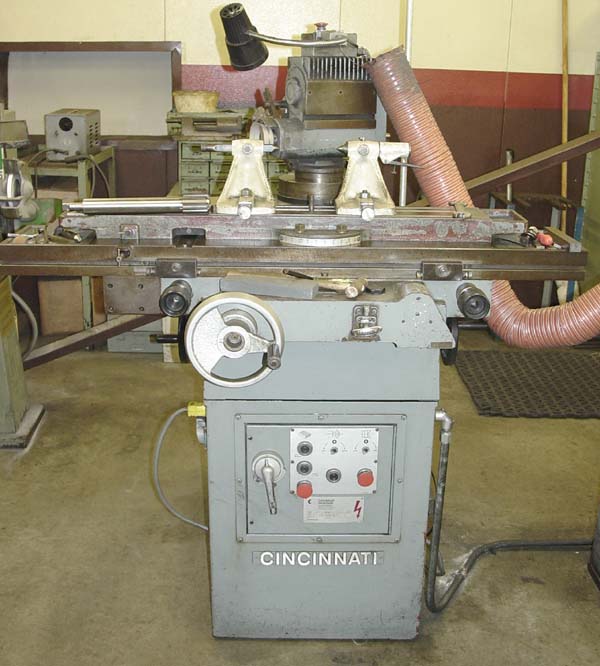

CINCINNATI #2 TOOL AND CUTTER GRINDER
New 1972, S/N 1D2F5ZF-62
Stock# K11891
New Style Eccentric Swivelling/Tilting Wheelhead,
Swivel Table,

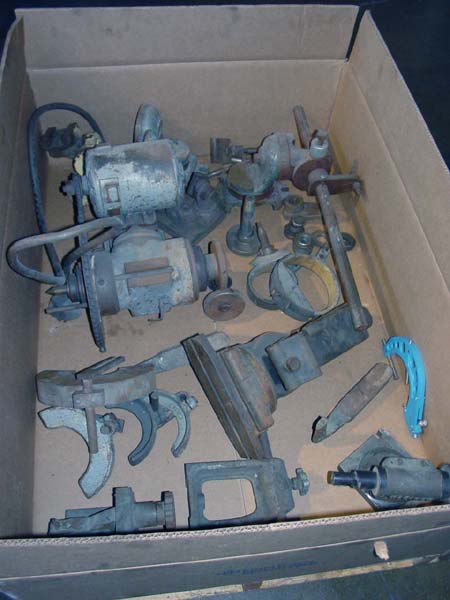

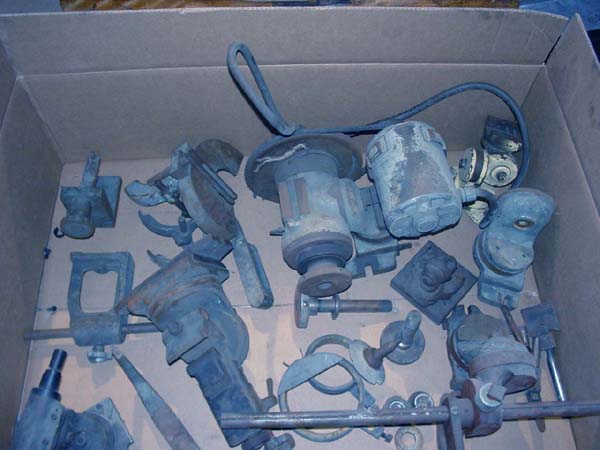

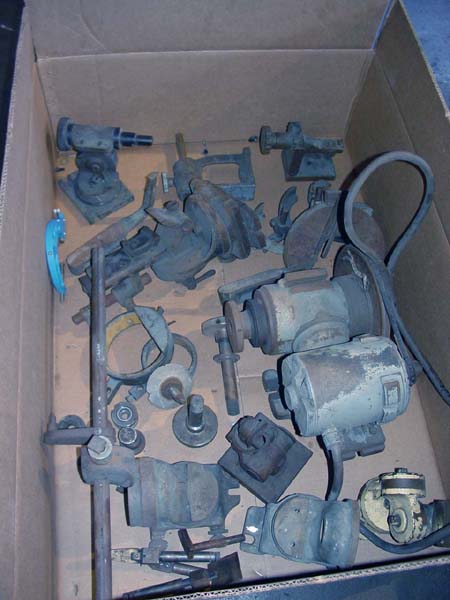

Hand Wheels on Left and Right, Bijur Oil Lub System, Large Tooling
Package.
CATALOGUE SPECIFICATIONS:
Table Size........................................
6"x36"
Table Travel...................................... 16"
Swing Over Table.................................. 10"Dia
Distance Between Tailstocks....................... 27"
Cross Travel of Table............................. 10"
Table Swivels..................................... 180 DEG
Vert. Travel of Wheel Spindle..................... 10-1/2"
Table Top to Spindle Center....................... 13-1/2"
Grinding Wheel Spindle Swivel..................... 360 DEG
Grinding Wheel Spindle Tilt....................... 30 DEG
Grinding Wheel Speeds (3)......................... 2958 RPM
.................................................. 3837 RPM
.................................................. 6425 RPM
Drive Motor....................................... 1 HP
Electronics....................................... 230/460/3/60
Approximate Machine Dimensions.................... 62" x 60"
Approximate Machine Height........................ 65"
Approximate Machine Weight........................ 2700 LBS
CONDITION: Appears to be in Excellent Condition !
PRICE: F.O.B. Cincinnati, Ohio.................... $
4,950.
