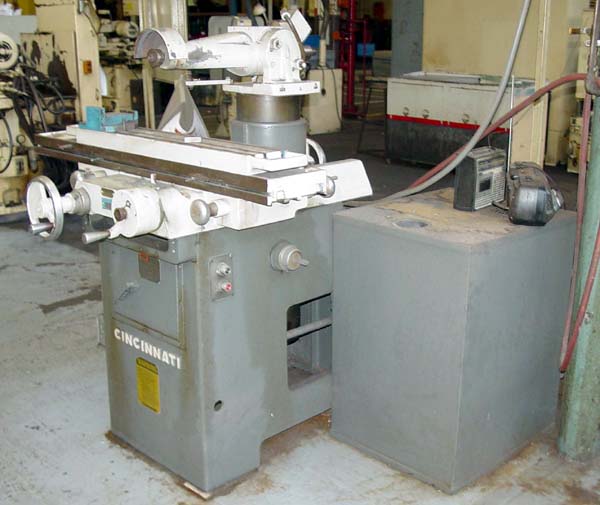

CINCINNATI #2 TOOL AND CUTTER GRINDER
New 1970, S/N 65-424-H-990-2
Stock# K11973
EQUIPPED WITH:
Swiveling/Tilting Wheelhead With Extended Spindle Nose, Universal

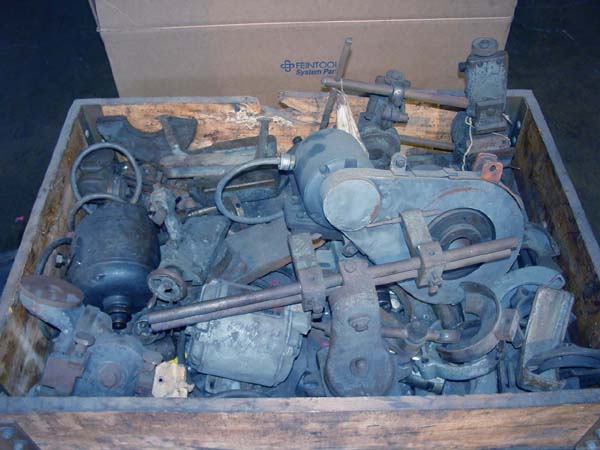

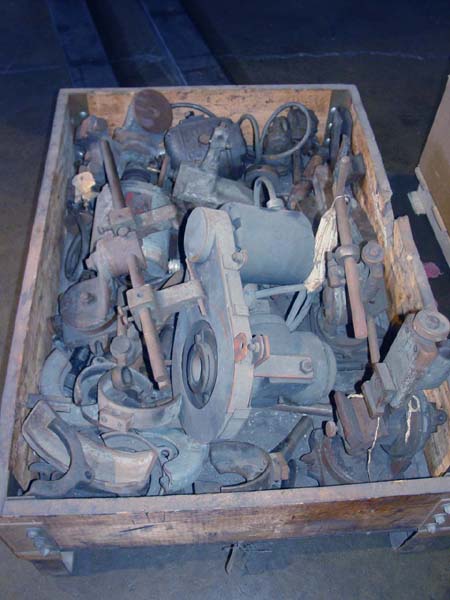

Workhead, Swivel Table, Hand Wheels on Left and Right, Large Tooling Package,
Dust Collector, Bijur Oil Lube System.
CATALOGUE SPECIFICATIONS:
Table Size........................................ 6"x36"
Table Travel...................................... 16"
Swing Over Table.................................. 10"Dia
Distance Between Tailstocks....................... 27"
Cross Travel of Table............................. 10"
Table Swivels..................................... 180 DEG
Vert. Travel of Wheel Spindle..................... 10-1/2"
Table Top to Spindle Center....................... 13-1/2"
Grinding Wheel Spindle Swivel..................... 360 DEG
Grinding Wheel Spindle Tilt....................... 30 DEG
Grinding Wheel Speeds (3)......................... 2958 RPM
.................................................. 3837 RPM
.................................................. 6425 RPM
Drive Motor....................................... 1 HP
Electronics....................................... 230/460/3/60
Approximate Machine Dimensions.................... 62" x 60"
Approximate Machine Height........................ 65"
Approximate Machine Weight........................ 2700 LBS

CONDITION: Appears to be in Excellent Condition !

PRICE: F.O.B. Cincinnati, Ohio.................... $ 4,950.
