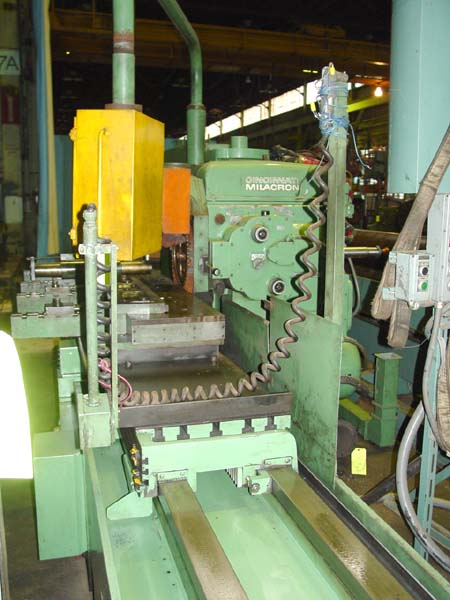

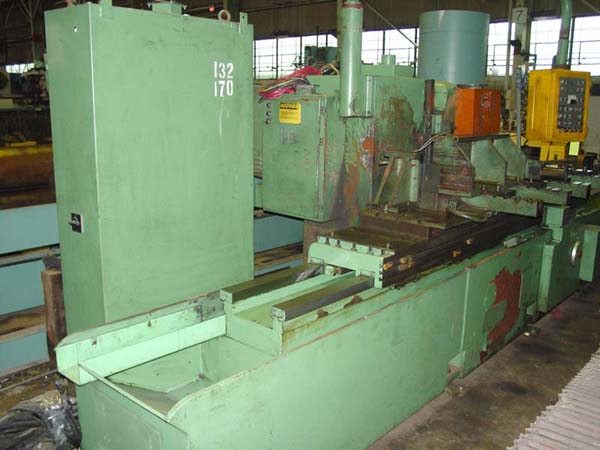

430-188 CINCINNATI HORIZONTAL PRODUCTION MILL

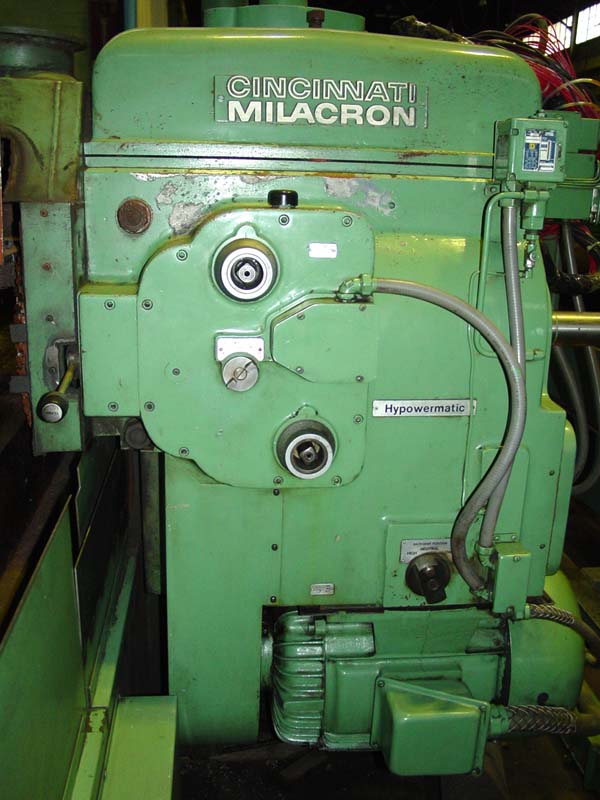

Model 430-188 HyPowermatic, New 1980, S/N 311441P80-0005
Stock # K12343
Automatic Table Cycles, Electric Table
Control Dogs for Automatic Table
Cycles, Power Rapid Traverse, Heavy Duty Overarm, Automatic Quill
Retraction, 14" x 72" Electromatic Chuck Flame Hardened Ways, Torit

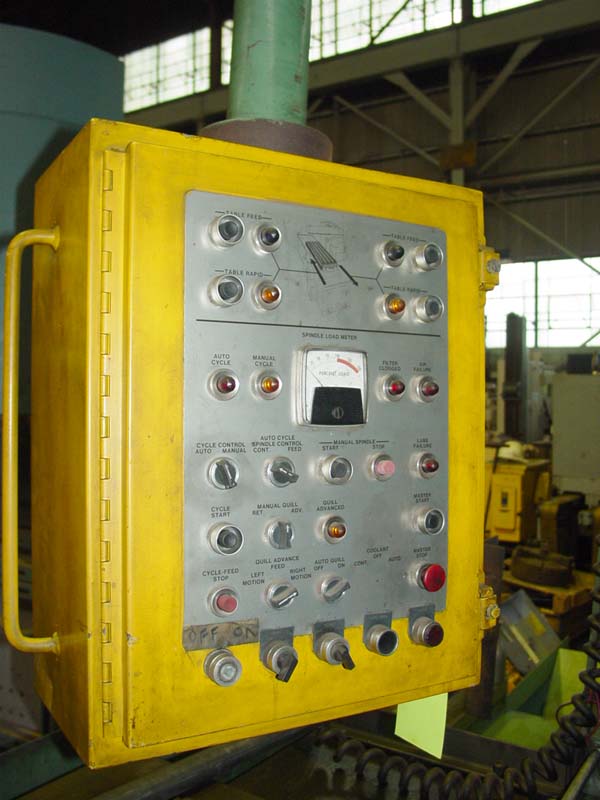

Dust Collector, Pendant Control w/Spindle Load Meter.
CATALOGUE SPECIFICATIONS:
Table Size............................................
18" x 126"
Table Working Surface................................. 18" x 120"
Longitudinal Table Travel (X-Axis).................... 96"
Vertical Travel of Spindle Carrier (Z-Axis)........... 17.25"
Quill Adjustment of Horizontal Spindle (Y-Axis)....... 6"
Max Vertical Height, Table to Spindle................. 22"
Min Vertical Height, Table to Spindle................. 4.75"
Feed Range Traverse (Infinite)........................ 1 to 150 IPM
Rapid Traverse........................................ 300 IPM
Horizontal Spindle Speeds (16)........................ 30-1200 RPM
Horizontal Spindle Horsepower......................... 30 HP
Electrics............................................. 440/3/60
Approximate Machine Dimensions........................ 19'4" x 8'4"
Approximate Machine Height............................ 80"
Approximate Machine Weight............................ 19,000.
CONDITION: Appears to be in Very Good Condition!
