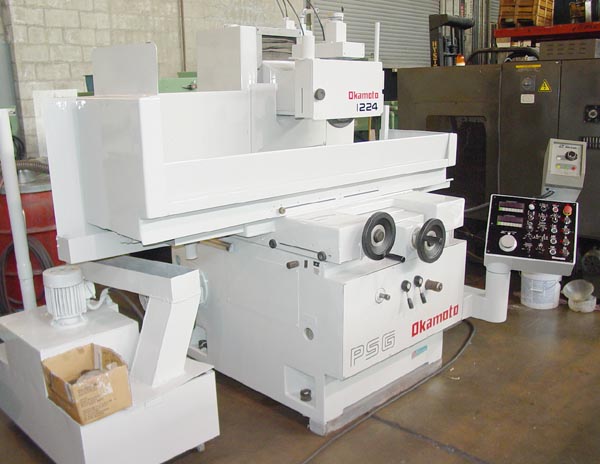

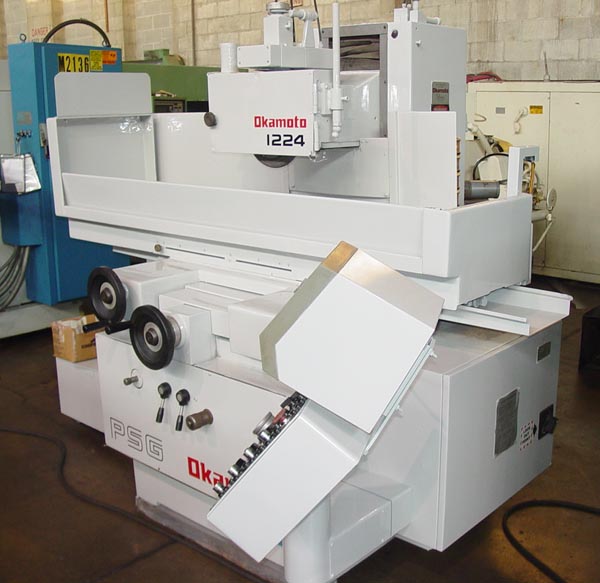

12" x 24" OKAMOTO HORIZONTAL SPINDLE RECIPROCATING SURFACE
GRINDER
Model ACC12.24DX, New 1991, S/N 63077
Stock # K12721
EQUIPPED WITH:
Automatic Incremental Power Downfeed, Digital Read-outs,
Manual Pluse
Generator, Spark-Out Cycle, Automatic Grinding Cycle,
Automatic Wheel

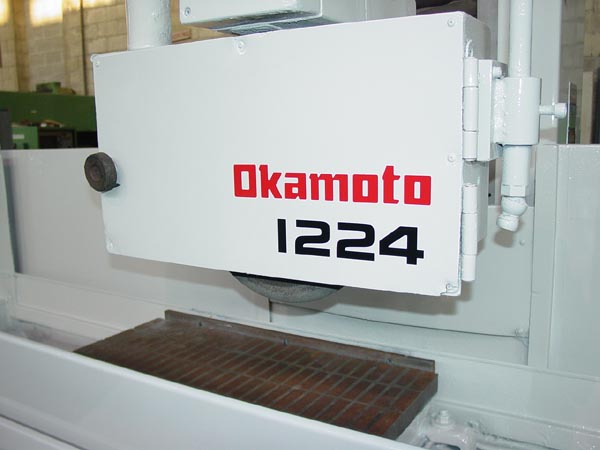

Retract after Spark-Out, 12" x 24"Electro-Magnetic Chuck,
Above-The-Wheel Diamond Wheel Dresser.
CATALOGUE SPECIFICATIONS:
Magnetic Chuck Working Surface....................... 12" x
24"
Longitudinal Travel (X-Axis)......................... 29.5"
Cross Travel (Z-Axis)................................ 13.5"
Vertical Travel (Y-Axis)............................. 19.25"
Max Height Under a New 12" Wheel..................... 13.7"
Table Longitudinal Feeds Range (Variable)............ 1-82 FPM
Croos Feeds Increments............................... .02 -.8
IPM
Spindle Vertical Feeds Increments.................... .00005"-
.0015"
Grinding Spindle Speed............................... 1800 RPM
Grinding Wheel Diameter.............................. 12"
Grinding Wheel Width, Standard....................... 1-1/2"
Grinding Wheel Motor................................. 5 HP
Electrics (Dual Voltage)............................. 440/3/60
Approximate Machine Dimensions....................... 80" x
95"
Approximate Machine Height........................... 80"
Approximate Machine Weight........................... 6,180
LBS
CONDITION: Appears to be in Very Good Condition !
