Vibra-Free

Model Year: 2003

42,000 RPM Spindle

Fanuc 16i-MA Control

“X” Travel = 23.62”

“Y” Travel = 15.75”

“Z” Travel = 15.75”

Table to Spindle end = 2.0” to 17.72”

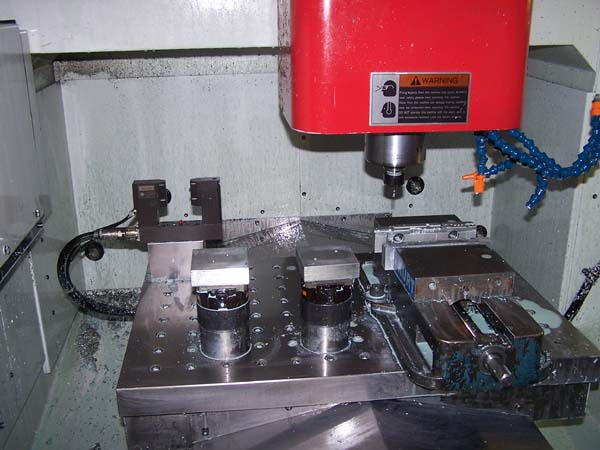

Laser Tool Offset Length & Dia.

Positioning Accuracy .0001

Repeatability Accuracy .00004

1.0 G Acceleration

Floor Space: 79” X 91”

Net Weight: 11,000 lbs.

220 VAC, 20 KVA

80 PSI min, 26 CFM

Flood Coolant System

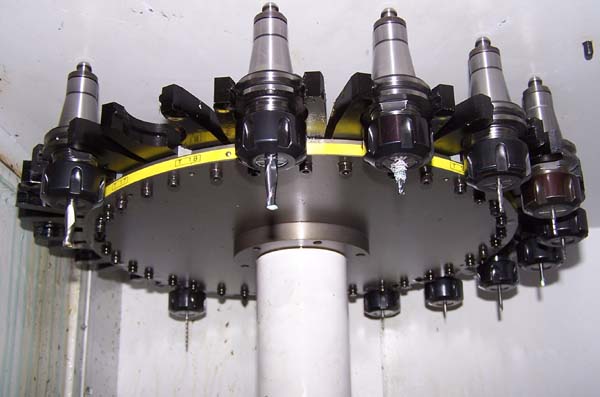

18 ATC Bi-Directional, SKI 25

(18) Tool Holders Included (Most are precision collet holders)

Max. Tool Dia. 2.0”
