Stock Number K12745
|
|

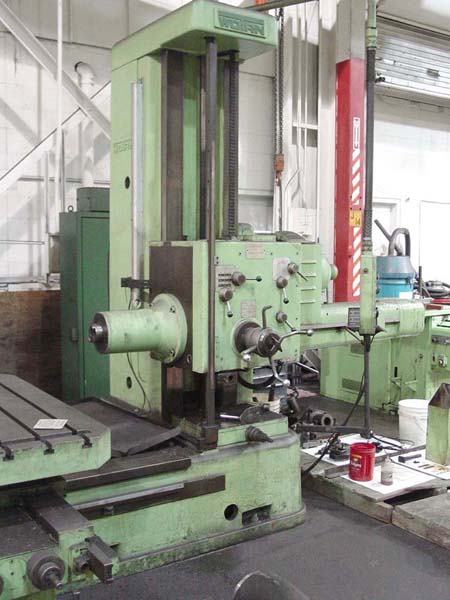

ACTUAL PHOTO
|
4" WOTAN Horizontal Boring Mill
|
4" WOTAN TABLE TYPE
HORIZONTAL BORING MILL
Model B100S, New 1968, S/N 52342, Stock # K12745
EQUIPPED WITH:
43" x 51" Built-In Rotary
Table, Acurite Digital Readouts, Pendant
Controls, Outboard Supports on Table, 50 Taper Spindle with Power
Draw Bar, Spindle Nose Extension Heavy Duty Milling, Tooling.
CATALOGUE SPECIFICATIONS:
Spindle
Diameter................................... 4"
Table Size......................................... 43" x 51"
Table Cross Travel (X-Axis)........................ 55"
Spindle-Head Vertical Travel (Y-Axis).............. 49"
Spindle (Quill) Travel (Z-Axis).................... 27"
Saddle Longitudinal Travel (W-Axis)................ 60"
Spindle Taper...................................... #50 NMTB
Spindle Horsepower................................. 10 HP
Spindle Speeds (20) Range.......................... 15 to 1600 RPM
Spindle Feeds (27) Range........................... .0008 to .333 IPR
Milling Feeds (32) Range........................... .016 to 91 IPM
Power Rapid Traverse............................... 91 IPM
Electrics.......................................... 440/3/60
Approximate Machine Dimensions..................... 183 x 150"
Approximate Machine Height......................... 118"
Approximate Machine Weight......................... 22,000 LBS
CONDITION: Appears to be
in Very Good Condition !! Many Extras !
|
|
|
