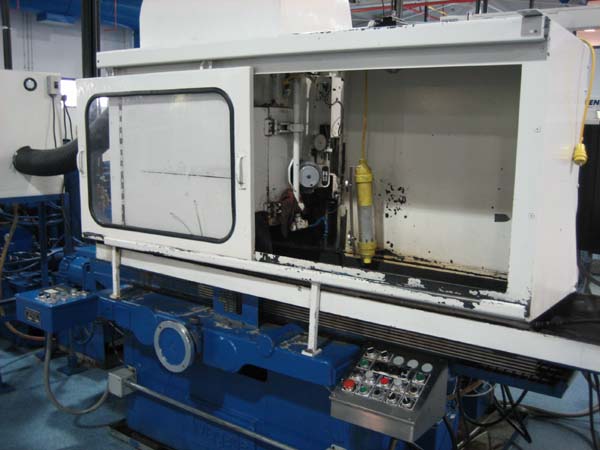

-1/2" x 40" MAGERLE CREEP FEED HORIZONTAL SURFACE GRINDER
                     Model SFPA-10-S4, New 1985, S/N 1357
                                           Stock # K12756

 EQUIPPED WITH:

Servo Table Infeed with Controller, Rough and Finish Grinding Cycles,
Spindle Load Monitor, Up-Graded ABB Spindle Drive Unit, Diamond Roll
Crush Dresser, Newall Linera Feedback Scales, Coolant System.

CATALOGUE SPECIFICATIONS:

 Working Surface..................,,..... 9.45" x 41.33" (240mm x 1050mm)
Longitudinal Table Travel .............. 44.48" ( 1130mm)
Maximum Grinding Width ................. 12.59" ( 320mm)
Cross Travel of Table................... 10.62" ( 270mm)
Vertical Travel of Wheel................ 18.50" ( 470mm)
Max Height Under a New Wheel............ 23.62" ( 600mm)
Grinding Wheel Standard Diameter........ 11.81" ( 300mm)
Grinding Wheel Max Diameter............. 15,74" ( 400mm)
Grinding Wheel Width, Standard.......... 3.93"  ( 100mm)
Grinding Wheel Bore..................... 5" ( 137mm)
Grinding Wheel Motor.................... 40 HP ( 30.8 KW)
Electrics (Dual Voltage)................ 240/3/60
Approximate Machine Dimensions.......... 137.5" x 95"
Approximate Machine Height.............. 89"
Approximate Machine Weight.............. 12,525 LBS ( 5700 kg)

 CONDITION: Appears to be in Very Good Condition !
