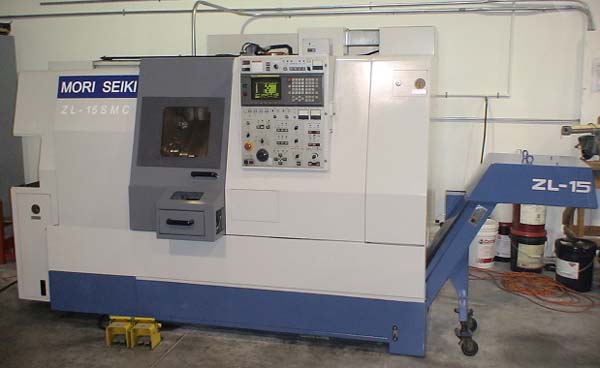

NEW 1997

CATALOG SPECIFICATION:
Swing Over Bed / Swing Over Cross Slide....... 18.9"/14.6"
Maximum Turning Diameter / Machining Length... 6.3" / 3.9"
X Axis Travel (Upper Turret).................. 8.7"
X2 Axis Travel (Sub Headstock)................ 7.7"
Z Axis Travel (Upper Turret).................. 17.7"
Z2 Axis Travel (Sub Headstock)................ 15.4"
C Axis Indexing............................... .001°
Rapid Traverse Rate X Axis / Z Axis....... 472 IPM/590 IPM
Spindle Speeds (Main Spindle)............. 50 - 5,000 RPM
Spindle Speeds (Sub Spindle).............. 60 - 5,000 RPM
Spindle Motor (Main / Sub Spindle)........ 10 / 7.5 HP
Spindle Nose (Main Spindle)............... A2-5
Spindle Bore Main Spindle / Sub Spindle... 2.0" / 1.4"
Upper Turret Tool Capacity (6 Sta. Live).. 12 Sta. Turret
Lower Turret Tool Capacity (Sub Turret)... 6 Stations
Live Tooling Motor........................ 3.5 HP
Live Tooling Speeds....................... 150 - 3,000 RPM

EQUIPPED WITH:
Fanuc 16TT CNC Control
3-Jaw Hydraulic Chuck Main Spindle
3-Jaw Hydraulic Chuck on Sub Spindle

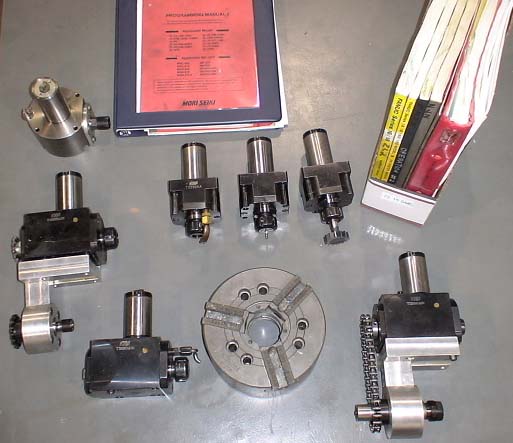

All Available Live Tooling
All Available Standard ID & OD Tool Holders
Right Hand Discharge Chip Conveyor
5 X Axis Live Tools ( not counting the 2 piggy back holders)
3 Z Axis Live Tools
