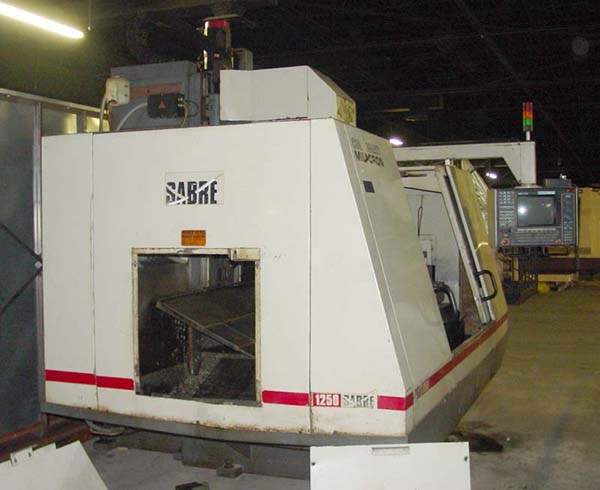

CINCINNATI SABRE-1250 CNC VERTICAL MACHINING
CENTER
New 1992, S/N 7037A-00-92-0155
Stock# K12797
EQUIPPED WITH:
Cincinnati Acramatic 850SX CNC w/12" Color CRT, Self Diagnostics,
Tool Tip Graphics, Multiple Part Program Storage, RS-232 Port,
Extended

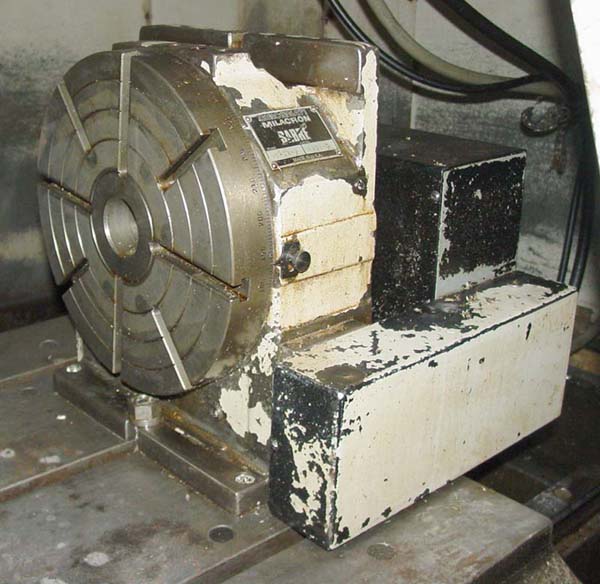

Programmimg, 12" Troyke Full Contouring Rotary Table, Ridgid
Tapping,
Enhanced Maintenance, 8000 rpm Spindle with Chiller, Continuous Load
for

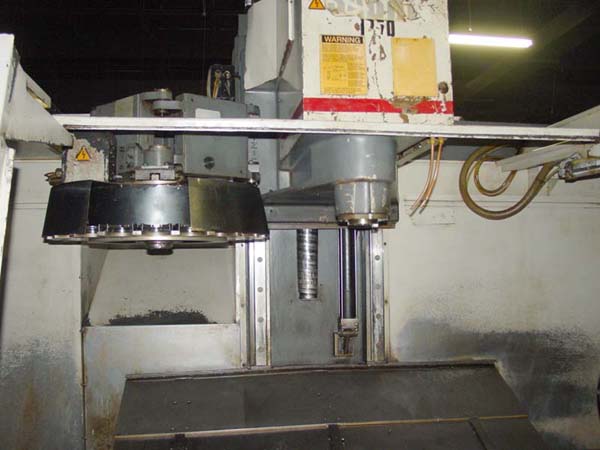

Drip Feeding Programs, Enhanced Tool Data, 21 Station Tool Changer,
Chip
& Thru Spindle Coolant System.
CATALOGUE SPECIFICATIONS:

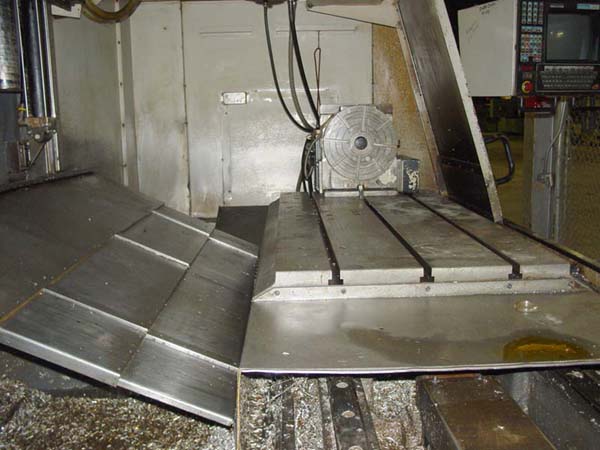

Table Working Surface................................. 54"x 26"
Table Load Capacity................................... 2,000 LBS
Longitudinal Travel (X-Axis).......................... 50"
Cross Travel (Y-Axis)................................. 26"
Vertical Travel (Z-Axis).............................. 26"
Feed Rates, All Axes.................................. 0.1 to 472
IPM
Rapid Traverse Rate, All Axes......................... 472 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 60-8000 RPM
Spindle Taper......................................... #40 CAT (V-Flg)
Approximate Machine Dimensions........................ 12' x 8'6"
Approximate Machine Height............................ 9'6"
Approximate Machine Weight............................ 17,500 LBS
CONDITION: Appears to be in Very Good Condition !
