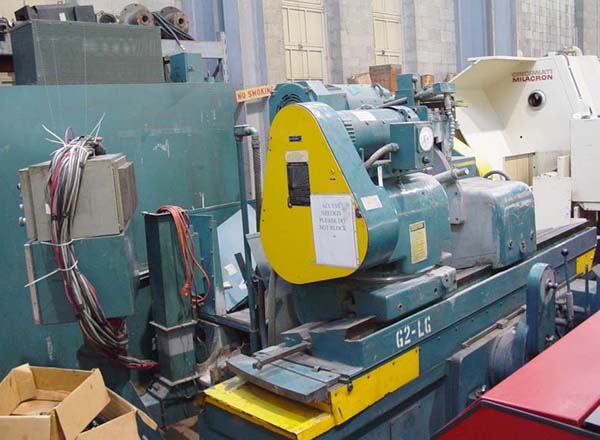

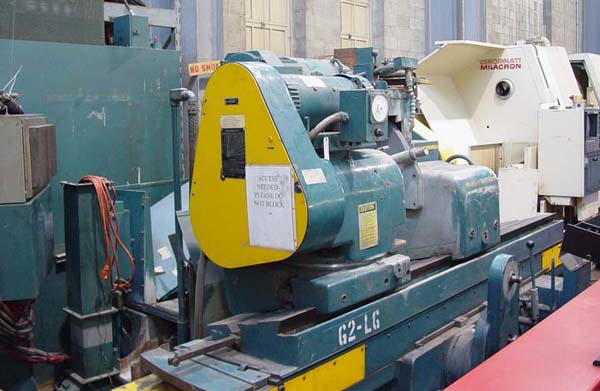

30" X 48" LANDIS PLAIN CYLINDRICAL GRINDER
Model CHW, New 1982 Rebuilt 2005, S/N 832-26
Stock # K12802
EQUIPPED WITH:

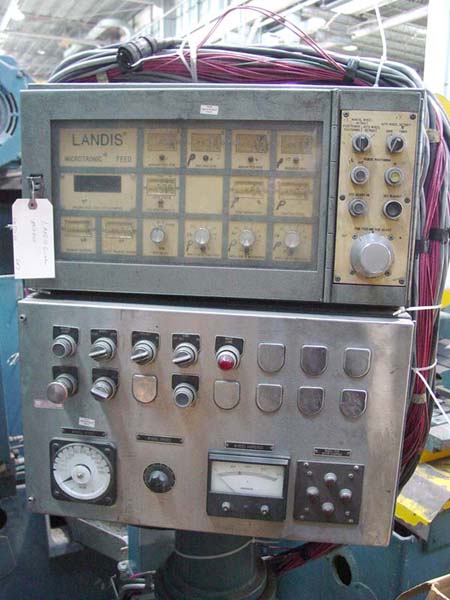

Landis Microtronic Infeed Control, Digital Readout on Control,
Tailstock
Mounted Wheel Dresser, 18 Degree Table Taper Adjustment, Variable
Speed
Workhead, Variable Speed Wheel Head, Swivel Work Head, Heavy Duty
40 HP

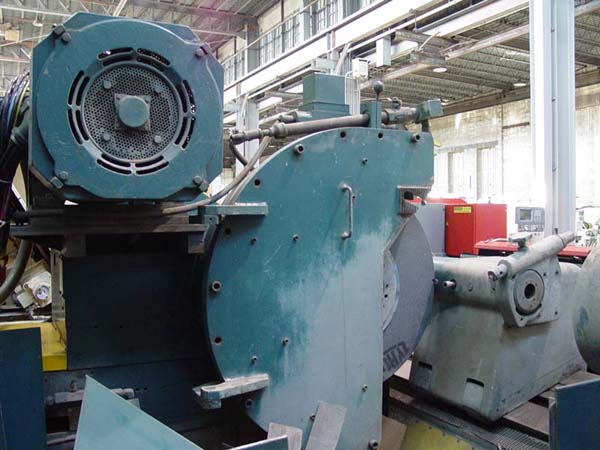

Wheel Head with 36" Diameter Wheel, Telescoping Way Covers,
Variable
Speed Hydraulic Table Traverse, Coolant Tank.
CATALOGUE SPECIFICATIONS
Swing Over Table, Maximum.............................. 31 7/8"
Distance Between Centers............................... 48"
Grinding Wheel, Standard Dia........................... 36"
Grinding Wheel, Width.................................. 3"
Grinding Wheel, Hole Dia............................... 12"
Workhead Spindle Speeds................................ 8-120 RPM
Wheel Head Max SFPM.................................... 6000 SFPM
Wheel Head Speed....................................... 200 -1300
RPM
Longitudinal Table Feeds............................... 3"-130"
IPM
Wheelhead Motor........................................ 40 HP
Workhead Motor......................................... 5 HP
Floor Space (L x W x H)................................
159"X93"X90"
Approx. Weight......................................... 23,000
LBS.
CONDITION: Machine was Rebuild by Landis in 2005. Rebuild
included; All
Ways Rescraped, Table Piston Replaced, Microspheric Spindle
Bearings
Rescraped and Reset, Microtrinic Control Cleaned and serviced.
Machine
Appears to be in Excellent Condition.
