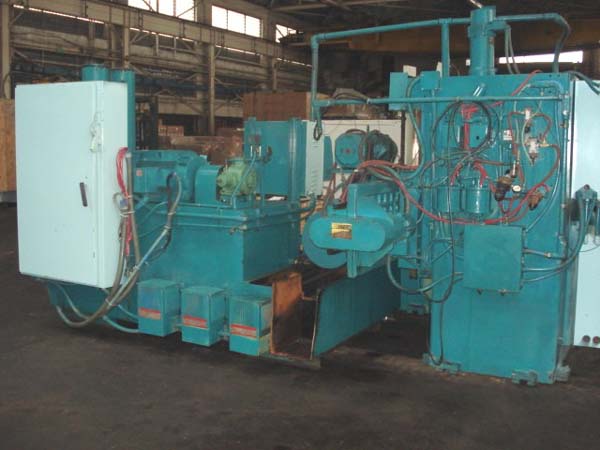

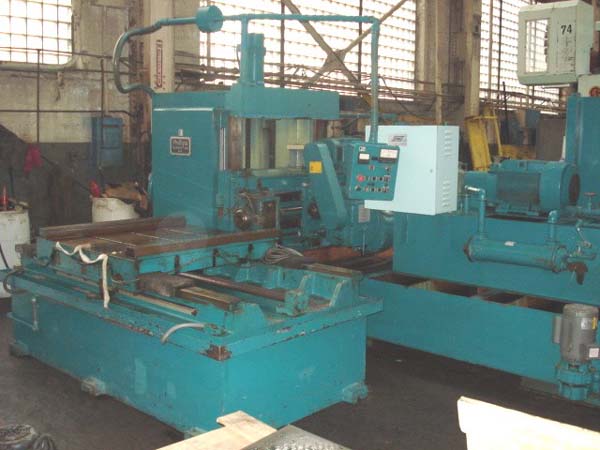

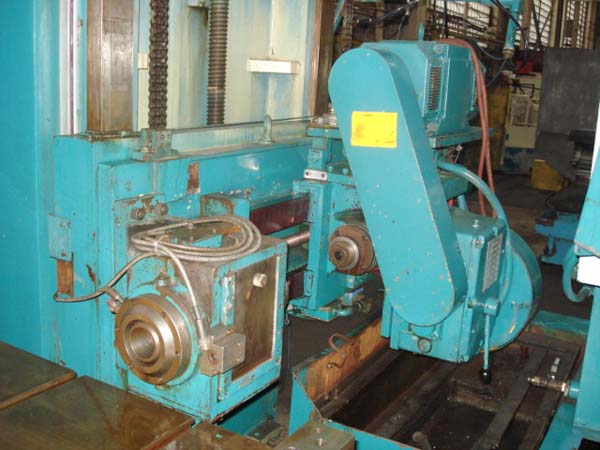

2"x 48" PHILLIPS COLUMN TYPE PRECISION HORIZONTAL DEEP HOLE DRILL
                         New 1980, Stock# K12806



EQUIPPED WITH:

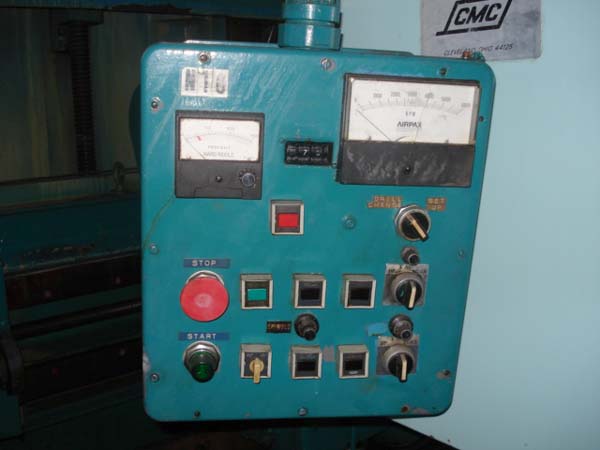

3-Axis Variable Speed Getty's Drive Motors with Pendent Control for
Axis Feed and Positioning, 15 HP Variable Speed Spindle, Spindle RPM

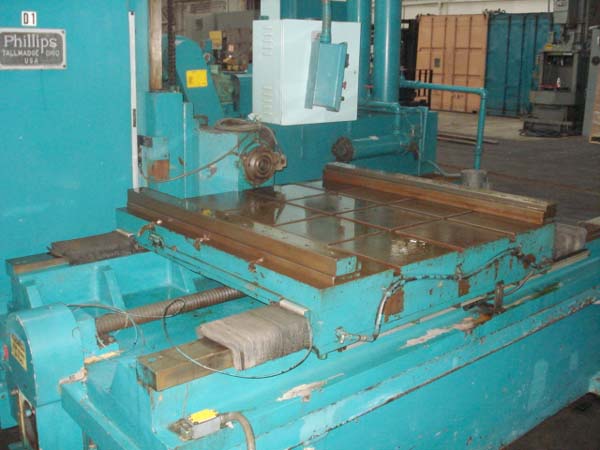

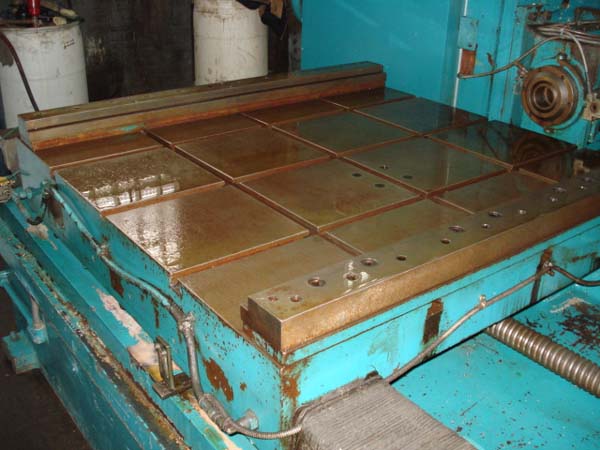

Meter, Spindle Load Meter, 48" x 48" T-Slotted Table, Ball Screws,

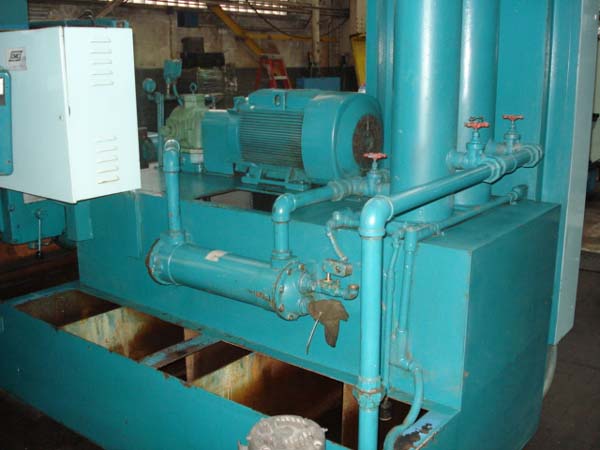

30HP High Pressure Phillips 30-450-40 Coolant System with Filtration
by Baffles and Cartridge Filters.



CATALOGUE SPECIFICATIONS:



Working Surface of Table.......................... 48" x 48"
Drilling Capacity (Solid Mild Steel).............. 2" Maximum
Drill Head Stroke................................. 48" Maximum
Vertical Spindle Travel........................... 14"
Horizontal Table Travel........................... 48"
Infinitely Variable Feed.......................... .1 - 12 IPM
Spindle Horsepower................................ 15 HP
Spindle Speeds Variable........................... 389-5468 RPM
Electrics......................................... 460/3/60
Coolant System Horsepower......................... 30 HP
Coolant system Operating Pressure................. 1000 PSI
Coolant System Flow............................... 40 GPM
Approximate Machine Dimensions Set Up............. 170" x 196"
Approximate Machine Height........................ 96"
Approximate Machine Weight........................ 26,000 lbs



CONDITION: Appears to be in Excellent Condition !
