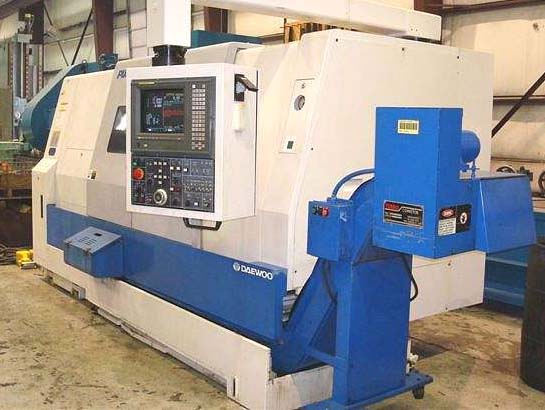

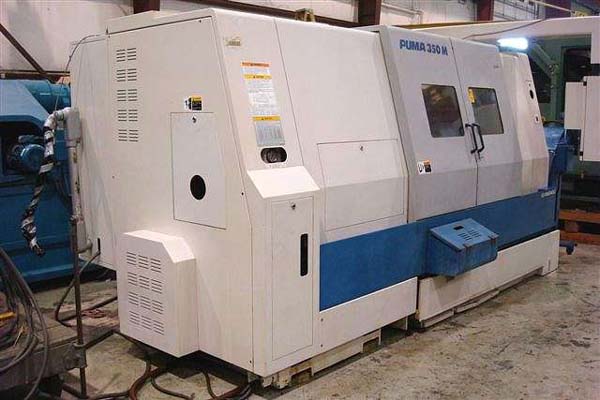

DAEWOO PUMA 350MA
CNC LATHE WITH LIVE MILLING AND BAR-FEEDER
NEW: 1998
CHUCK SIZE.............................12"
BAR CAPACITY...........................3.5"
SPINDLE BORE...........................4.02"
SWING OVER BED.........................28"
SWING OVER CARRIAGE....................18.9"
MAXIMUM TURNING DIAMETER...............18.1"
MAXIMUM TURNING LENGTH.................41.3"
SPINDLE MOTOR..........................40 HP
SPINDLE SPEEDS.........................30 TO 3,000 RPM
ROTARY TOOL SPINDLE MOTOR..............7.5 HP
ROTARY TOOL SPEEDS.....................30 TO 3,000 RPM
SPINDLE INDEXING (C-AXIS)..............0.001 DEGREES

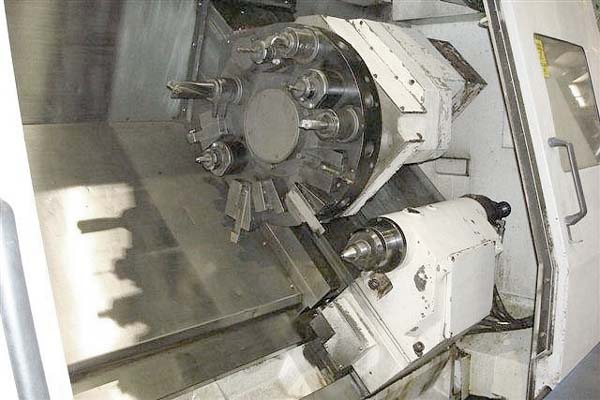

TURRET CONFIGURATION.(VDI-50)..........12 TOOLS (6 STATIONS FOR LIVE
HOLDERS)
RAPID TRAVERSE.(X/Z AXES)..............630 / 790 IPM
TRAVELS (X/Z AXES).....................14.3" / 43.5"
TAILSTOCK QUILL STROKE PROGRAMABLE.....4.7"
EQUIPPED WITH:

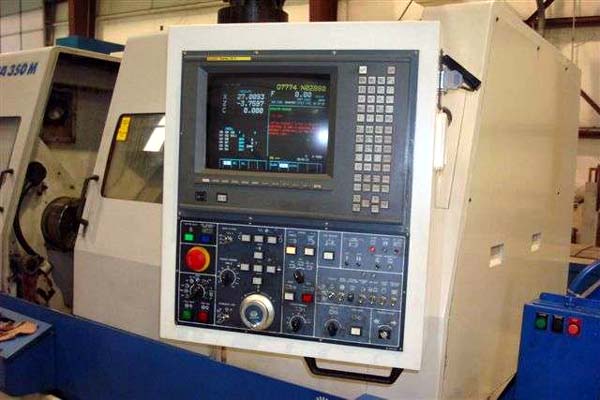

* FANUC 18-T CNC CONTROL
* CHIP CONVEYOR

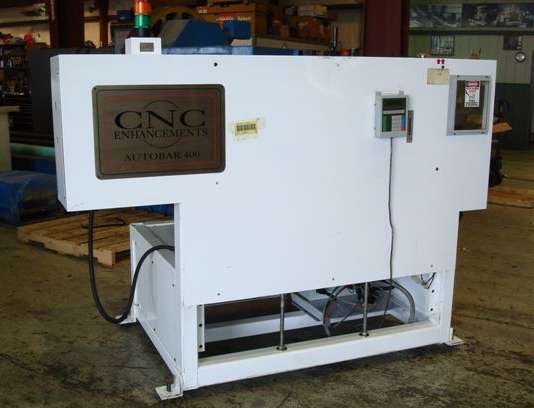

* CNC ENHANCEMENTS AUTOBAR 400 MAGAZINE BAR FEEDER
* PARTS CATCHER
* HYDRAULIC TAILSTOCK WITH PROGRAMABLE BODY AND QUILL
* AUTOMATIC TOOL SETTER
* (2) SMW HYDRAULIC STEADY RESTS (SLK212 .79" TO 4.7" & SLK520 2" TO
7.9")
