WARNER & SWASEY MODEL: 3SC (TWO AVAILABLE)
CNC LATHE
REMANUFACTURED IN 1994
MAX TURNING DIAMETER.................. 33"
MAX TURNING LENGTH.................... 27"
TOOL SHANK SIZE....................... 1.5" X 6"
TURRET STATIONS....................... 12
LONGITUDINAL STROKE.(Z-AXIS).......... 15"
CROSS STROKE.(X-AXIS)................. 12 3/4"
MOTOR DC VARIABLE SPEED............... 75 HP
SPINDLE SPEEDS........................ 10-800 RPM
SPINDLE NOSE.......................... A1-15
HOLE THRU SPINDLE.....MACHINE #1 IS 6-3/8", MACHINE #2 IS 7 1/4"
APPROX. FLOOR SPACE................... 141" x 200" X 98" TALL
APPROX. WEIGHT........................ 32,000 LBS.
EQUIPPED WITH:
* FANUC 18T CNC CONTROL
* 24" 3-JAW HYDRAULIC CHUCK

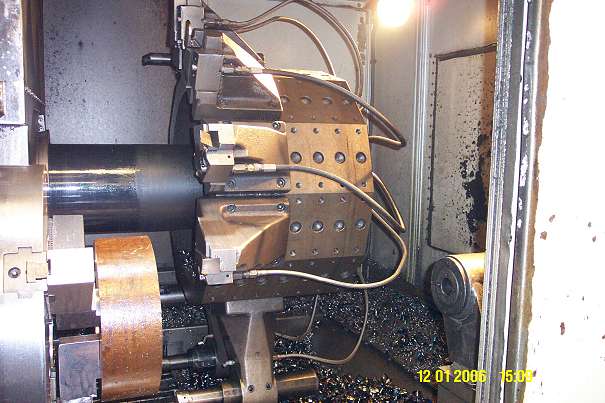

* 12 STATION POWER INDEXING TURRET
* TAILSTOCK
* ALL AVAILABLE TOOL HOLDERS AND MANUALS
* CHIP CONVEYOR
