CINCINNATI MILACRON 300MT FOR SALE Live Tool USED CNC Lathe, 4-Axis CNC TURNING CENTER with LIVE TOOLING
CINCINNATI MILACRON 300MT 4-Axis CNC TURNING CENTER with LIVE
TOOLING
Stock Number K12815
|
 |

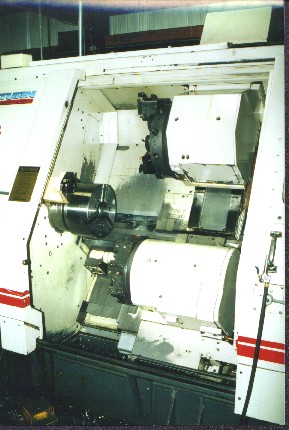

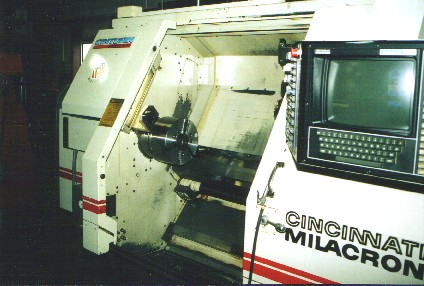

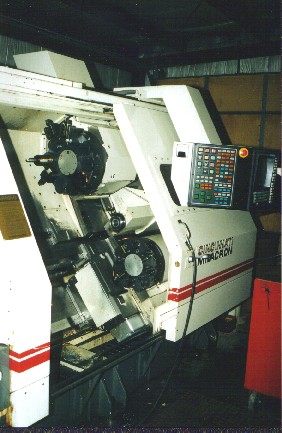

ACTUAL PHOTO
|
CINCINNATI MILACRON 300MT 4-Axis CNC TURNING/MILL CENTER
Model 300MT/4-1000, New
1994
Stock #k12815
EQUIPPED WITH:

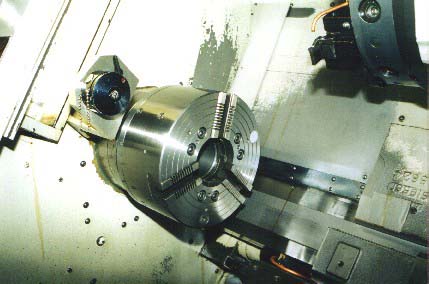

Acramatic 950 CNC Control w/14" Color CRT, 12" 3-Jaw Front Actuated
Hydraulic Chuck, `Live' Spindle Milling/Drilling Tool Turret Option,
Programmable Tailstock Option,, 50 HP Spindle Drive, Dual 8
Tool Simultaneous Tool Turrets (16 Total Tools), Chip Conveyor,
Coolant

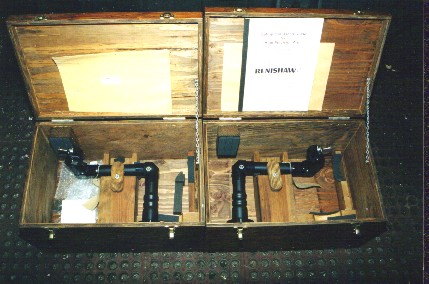

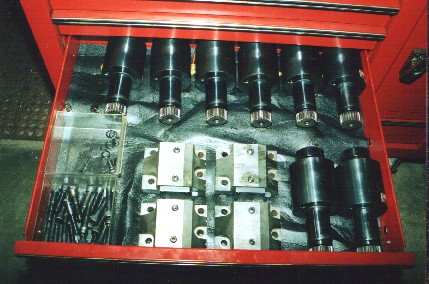

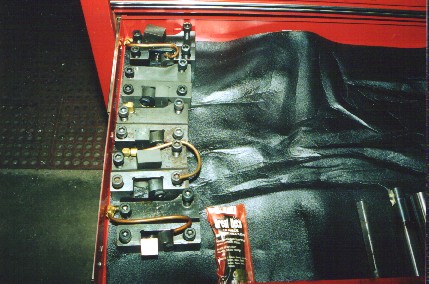

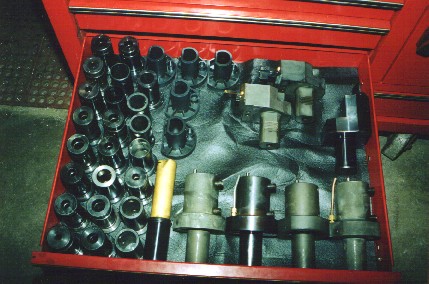

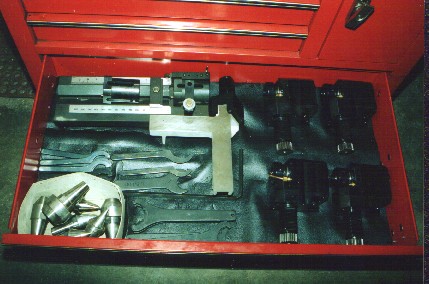

System, Tool Setting Probes, Tooling Package.
CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed ................................... 22.00"
Max Swing Over Crosslide Ways............................... 12.5"
Max Machinable Center Distance.............................. 40"
Cross Travel (X-Axis) Upper Slide Above Center...... 8.875"
Lower Slide Below Center...... 5.5"
Longitudinal Travel (Z-Axis) Upper Slide................... 38"
Lower Slide .................. 44"
Feed Range X & Y-Axis (Infinitely Variable) ................. .1-200
IPM
Rapid Traverse Rate X & Y Axis ............................. 400 IPM
Tool Positions (8 on Each Turret)........................... 16
Total
Spindle Bore ............................................... 3.15"
Spindle Nose ...............................................
A2-8
Spindle Speed Range ........................................ 88-3500
RPM
Spindle Horsepower.......................................... 50 HP
Approximate Machine Dimensions.............................. 208" x
96"
Approximate Machine Height.................................. 95"
Approximate Machine Weight.................................. 24,000
LBS
CONDITION: Machine Appears to be in Very Good Condition !
Only 1800 Hours of run time !
|
 |
|
