WARNER & SWASEY UNIVERSAL CNC TURNING CENTER
Model WSU-12, S/N 3292934, New 1988
Stock# K12855
EQUIPPED WITH:

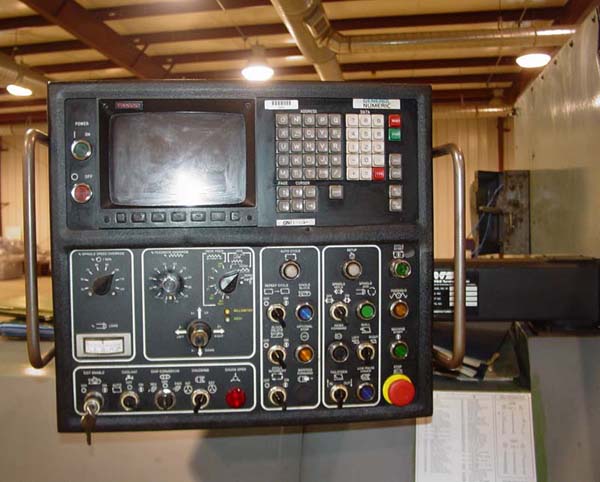

Fanuc GN-11T CNC Control w/CRT, Multiple Part Program Storage,
Full Program and Edit at the Control, Programmable Bed
Mounted Tailstock, Heavy Duty Hardened & Ground Ways, Heavy Duty
Slant

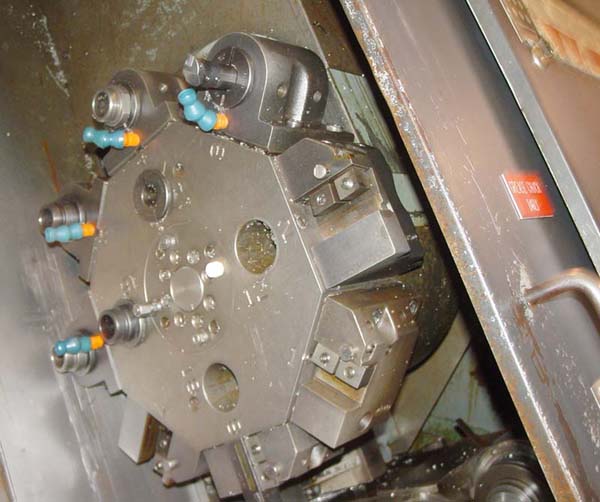

Bed Design, 12" Hydraulic 3-Jaw Chuck, 12 Station Tool Turret
Parts Catcher, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over the Slant Bed ........................... 26"
Max Swing Over Carriage ................................ 15"
Max Tailstock Position ................................. 43.38"
Max Programmable Center Distance ........................ 40"
Max Machinable Center Distance ......................... 40"
Cross Travel (X-Axis) .................................. 14.13"
Longitudinal Travel (Z-Axis) ........................... 42.76"
Tool Positions ......................................... 12
Spindle Bore ........................................... 3"
Spindle Nose ........................................... A2-8
Feed Range (Infinitely Variable) ....................... 0-200 IPM
Rapid Traverse Rate .................................... 0-400 IPM
Spindle Speed Range .................................... 43-3000
Spindle Drive Motor .................................... 30 HP
Electrics .............................................. 460/3/60
Approximate Machine Dimension........................... 207" x 84"
Approximate Machine Weight.............................. 22,500 LBS
Condition: From a Large Manufacturers Floor. Was Running Parts Every
Day. Appears To Be in Very Good Condition !
