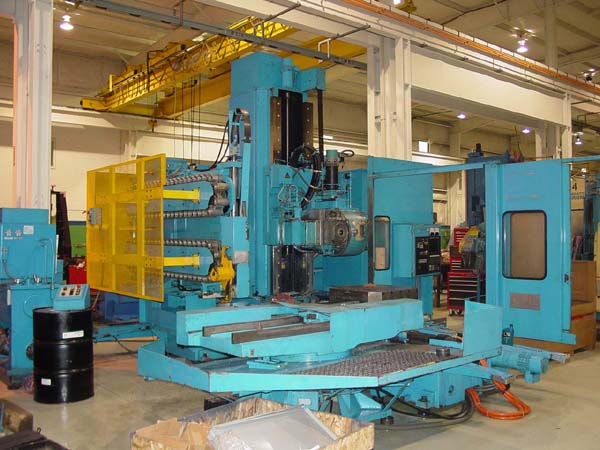

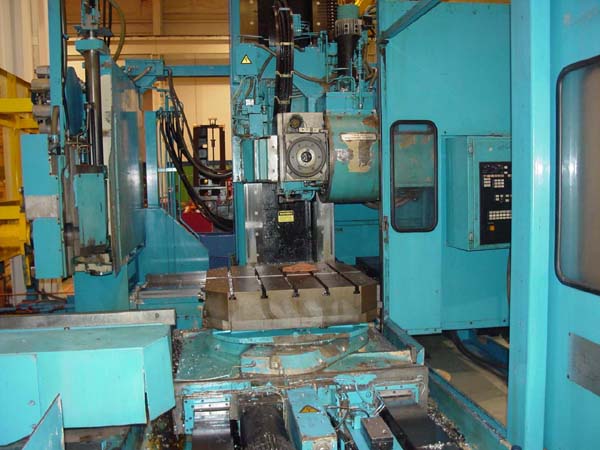

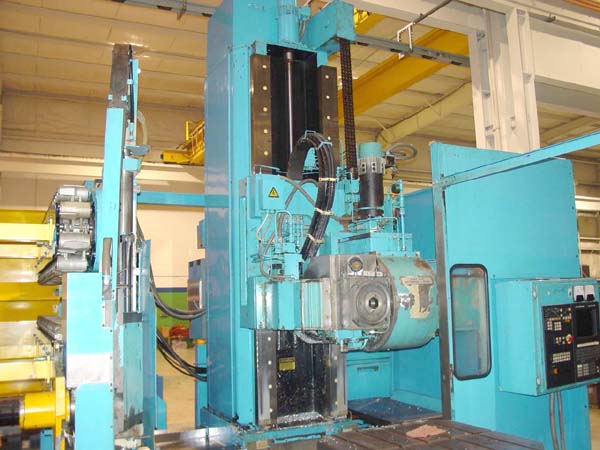

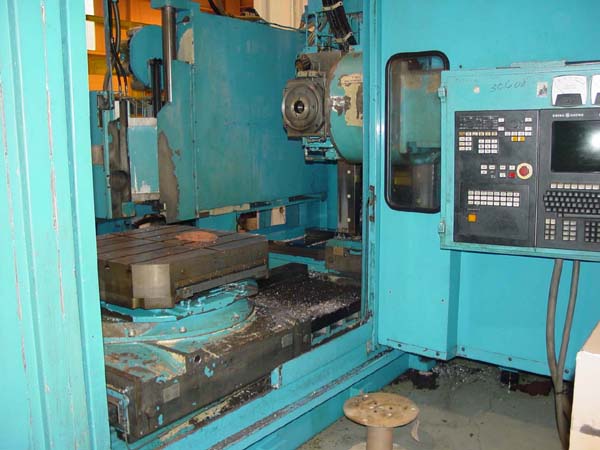

CINCINNATI T-30 5-AXIS CNC HORIZONTAL MACHINING CENTER
                                         New 1987, Stock # K131870

EQUIPPED WITH:

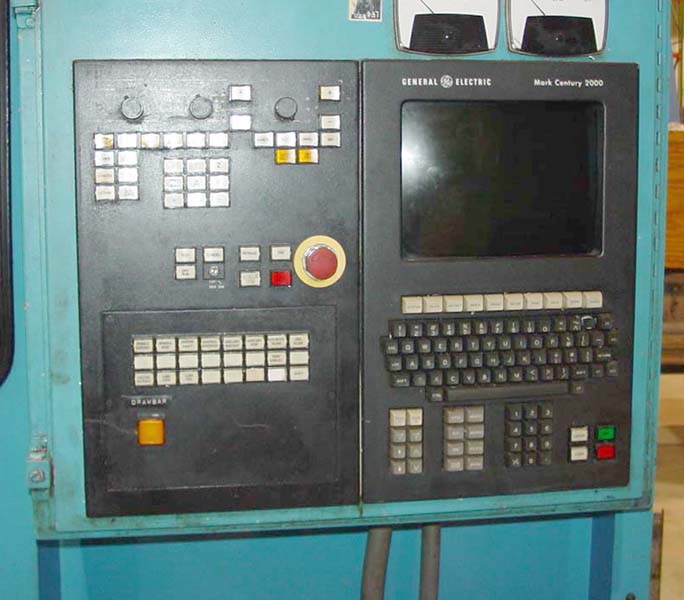

GE 2000 CNC Control with  CRT, Automatic Pallet Changer with  Qty (2) 31.5" Contouring 4-Axis Pallets (360,000 Positions), The 5th Axis is Spindle Tilt, Linear Feedback Scales, Arranged for Spindle and Fixed Probes, Thru Spindle Coolant, Torque Controlled Machining, Auto Tool Recovery, 90 Station Tool Changer, Chip Conveyor and Coolant System

 CATALOGUE SPECIFICATIONS:

 Longitudinal Table Travel (X-Axis)................... 40"
Vertical Travel (Y-Axis)............................. 60"
Head Cross Travel (Z-Axis)........................... 62"

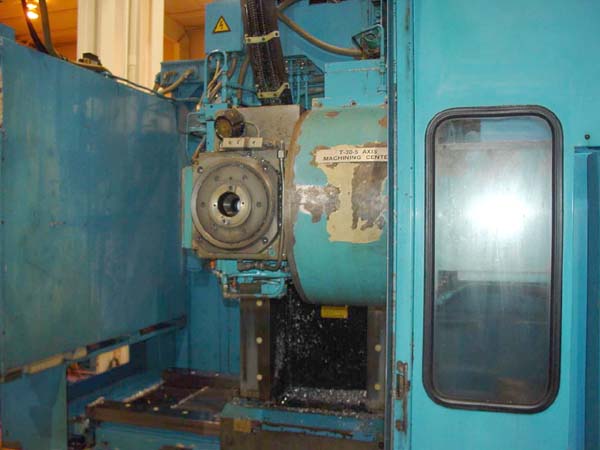

Spindle Tilt (A-Axis)................................ 150 Degrees
Pallet Rotation (B-Axis)............................. 360 Degrees
Pallet Dimensions.................................... 31.5" x 31.5"
Maximum Pallet Load.................................. 4,500 LBS
Number of Pallets.................................... 6
Feed Rates (X, Y, & Z Axes).......................... .1-400 IPM
Feed Rate, A-Axis.................................... 2-400 Degrees/Min.
Rapid Traverse (X, Y, & Z Axes)...................... 400 IPM
Rapid Traverse A-Axis................................ 3660 Degrees/Min.
Spindle Horsepower................................... 30 HP
Spindle Speed Range.................................. 20-6000 RPM
Spindle Taper........................................ #50
Number of Tool Positions............................. 90
Electrics ........................................... 460/3/60
Approximate Machine Dimensions....................... 241" x 259"
Approximate Machine Height........................... 161"
Approximate Machine Weight........................... 55,000 LBS

 CONDITION: This Machine Appears to be in Very Good Condition!
