Stock Number K12864
|
|

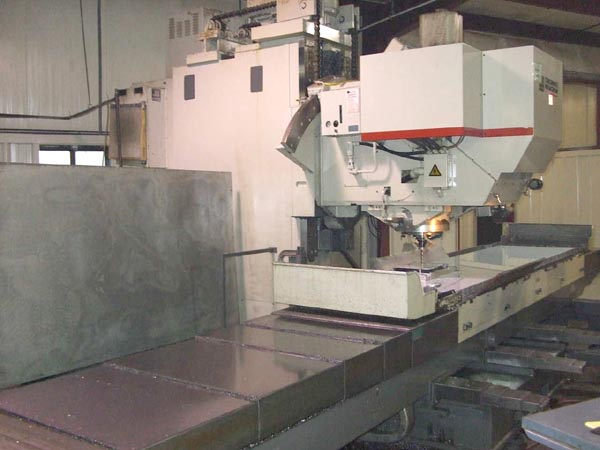

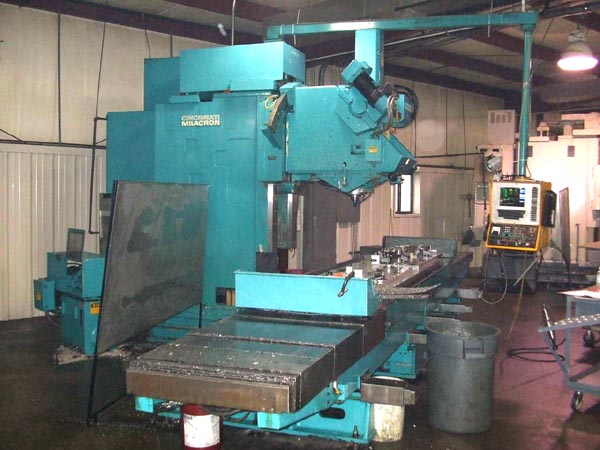

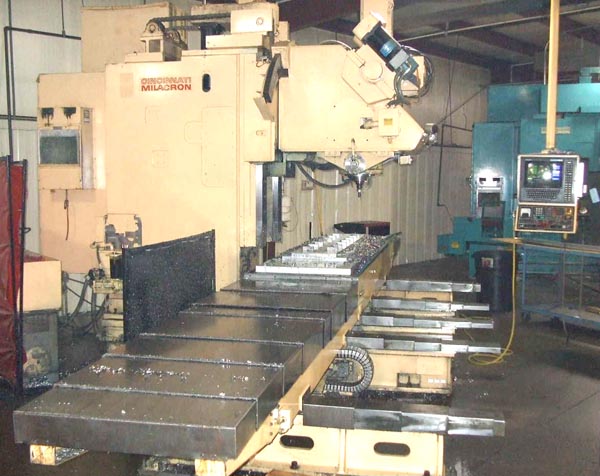

ACTUAL PHOTO
|
3 Machine Available !
|
Cincinnati 20VC-120 5-Axis Vertical
Machining Center
Model 20vc120, New 1990, Stock# k12864 |
|
|
EQUIPPED WITH:
Acramatic 950 Full 5 Axis simultaneous
Contouring Control W/ CRT Touch Screen Programming, Expanded
Multiple Part Program Storage, Combination Flood/ Mist Coolant
Systems, RS-232 Port, Spindle Load Meter, Function Lock, Axis
Error Compensation, Axis Limit ACC/DCC
5-Axis, Cutter Diameter Compensation, Coolant System.
CATALOG
SPECIFICATIPONS: |
| |
|
Number of Axis |
5 Axis |
|
Table Size |
124" x 20" |
|
Table Load Capacity |
10,000 lbs. |
|
X-Axis Travel |
120" |
|
Y-Axis Travel |
30" |
|
Z-Axis Travel |
24" |
|
U Axis (Tilt) |
+/- 50 Degrees |
|
Tool Magazine Capacity |
30 Position ATC |
|
Spindle Taper |
# 50 Taper |
|
Spindle Speed ( Infinite
Range) |
20 to 3600 RPM |
|
Spindle Motor Continuous |
20 HP |
|
Spindle Nose to Table Top |
5" to 29" |
|
Machine Weight |
54,000LBS |
|
|
|
|
 |
|
