MORI SEIKI
MODEL ZT2500Y OPPOSED SPINDLE CNC TURNING CENTER WITH LIVE MILLING AND
Y-AXIS
New: 2001
EQUIPPED
WITH:
Mori Seiki

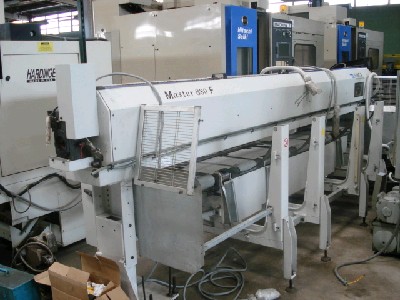

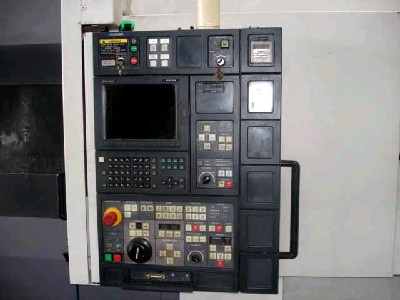

MSG501 (Fanuc 18iTT) CNC Control With Iemca Master 880F/387 Barfeed.
Track Mounted Flat Screen Monitor. Keyboard. RS232. PCDMIS. Custom
Macros. Door Interlock. External M-Codes. Work Counter. Data Server.
In Machine Measuring (Turret 1, 2). Air Blow. Chuck Foot Switch.
Barfeed Interface. Complete With (4) Sets Of Channels. Gantry Loader/Unloader
Complete With Workpiece Unloading Conveyor. (2) 10" Kitagawa B-210
3-Jaw Chucks. (2) Full "C" Axis Spindles. (2) 12-Position Turrets With
6 HP Live Milling. Approximately 40 Live Milling Heads. Approximately
20 Static Tool Holders. Chip Blaster GV20 High Pressure Coolant
System. Oil Chiller. 35J Collet Chuck With Collets. Endomatic Chip
Conveyor. Transformer. Miscellaneous Wrenches, Tools And Repair Parts.
Books And Manuals.
SPECIFICATIONS:
Swing over
Bed
27.56"
Swing over Cross
Slide
16.54"
Maximum Distance
between Spindle Noses
51.18"
Maximum Turning
Diameter No.
1 15.35"
Maximum Turning
Diameter No.
2 14.17"
Maximum Turning
Length
13.78"
Standard Turning
Diameter
10.23"
Bar Work
Capacity
2.87"
X-Axis Travel
No.
1
11.02"
X-Axis Travel
No.
2
7.87"
Z-Axis
Travel
38.78
Y-Axis Travel
No.1
2.76"
Spindle 2 Travel
(B-Axis)
38.8"
Spindle 1 &
2
Speed
Range
40-4000
Type of
Spindle
Nose
JIS A2-8
Through
Spindle Hole
Diameter
3.46"
Chuck
(Solid &
Hollow)
10"
Turret 1 &
2
Number of
Tools on
Turret
12
Square
Shank Height of
Tool 1"
Shank
Diameter of Boring
Bar 1.5"
Rotary Tool
Spindle 1 &
2
Speed
Range
6000 RPM
Drill
Capacity,
Maximum
.98" Dia.
Tap
Capacity,
Maximum
M16
Rapid Traverse
Rate: X1 &
X2
944.88 IPM
Rapid Traverse
Rate: Z1 &
Z2
944.88 IPM
Rapid Traverse
Rate:
Y
472.44 IPM
Rapid Traverse
Rate:
B
944.88 IPM
Rapid Traverse
Rate:
C
300 min-1
Jog Feedrate: X,
Z &
B
0 - 50 IPM
