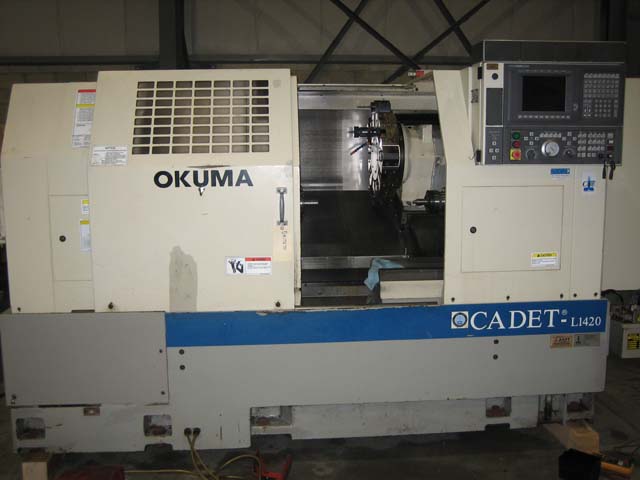

OKUMA CADET
L1420 BIG BORE CNC LATHE
Model L1420BB, NEW IN 1998, Stk#
K12886
EQUIPPED
WITH:
OSP 700L CNC CONTROL WITH MACMAN, TOOL LIFE MANAGEMENT, SPINDLE
ORIENTATION ELECTRIC,
LNS S35 COLLET CHUCK,
15" 3-JAW KITAGAWA CHUCK
W/ASSORTED TOP JAWS,
TOOL PRESETTER ? MANUAL,
CHIP CONVEYOR
TAILSTOCK,
V-12 TURRET
MAIN
SPINDLE ? BIG BORE
SPINDLE
NOSE: ASA
A2-11
SPINDLE
BORE: 4.33"
BAR
CAPACITY:
3-5/8"
MAXIMUM
SPINDLE SPEED: 2800 RPM
NUMBER
OF SPINDLE SPEEDS: INFINITELY VARIABLE
MACHINE
TRAVELS
CROSS
SLIDE (X-AXIS): 9.05"
LONGITUDINAL (Z-AXIS):
26.38"
CUTTING
FEED RATE: 0.0001 ?
40 IPR
RAPID
TRANSVERSE X: 472 IPM
RAPID
TRANSVERSE Z: 591 IPM
TURRET
TYPE:
AUTO/V12
NUMBER
OF TOOLS: 12
TOOL
CLAMPING: BOLT
CLAMP
BED
LENGTH
OF SLIDEWAY: 59.94"
WIDTH OF
SLIDEWAY: 18.11"
MOTORS
MAIN
SPINDLE: 30
HP
X-AXIS
SERVO MOTOR: 2.7 HP
Z-AXIS
SERVO MOTOR: 5"
HYDRAULIC POWER PUMP MOTOR: 2 HP
COOLANT
PUMP MOTOR: .34 HP
COOLANT
CAPACITY: 60 GALLONS
HYDRAULIC TAILSTOCK
DIAMETER
OF QUILL: 3.94"
TAPER OF
CENTER: MT #5
QUILL
STROKE:
4.72"
HYDRAULIC POWER UNIT
TANK
CAPACITY: 14
GALLONS
PRESSURE
RANGE ADJUSTMENT: 450 PSI
FLOW:
6.6 GPM
FLOOR
SPACE, APPROX.: 128.7" X
68.7"
WEIGHT,
APPROX.: 13,600
LBS
ELECTRICS:
220V, 3 PH, 60 CYCLE
