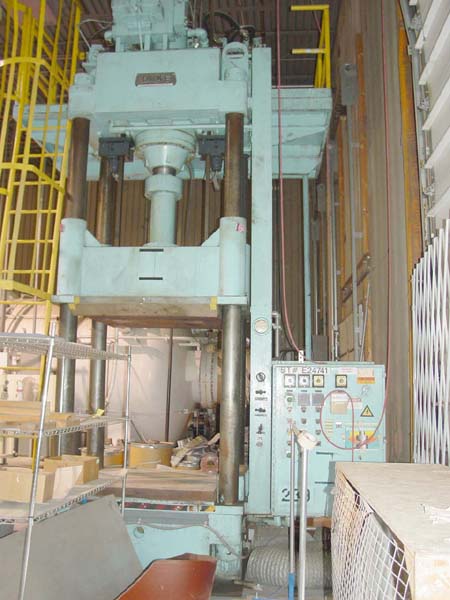

200 TON DAKE 4-POST HYDRAULIC PRESS
                  Model 27-506, S/N 157056, New 1967
                               Stock# K12907



EQUIPPED WITH:

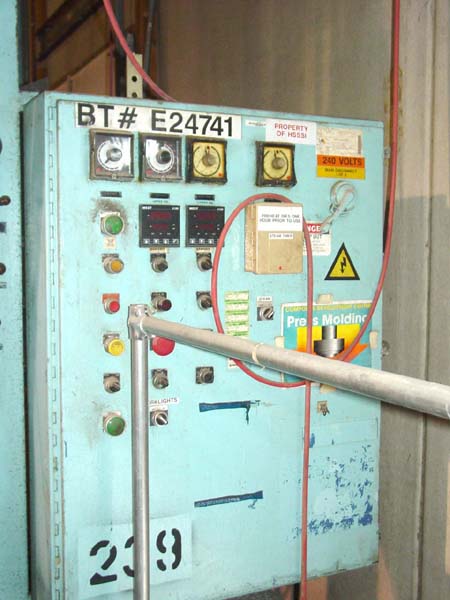

4-Post Down Acting Design, Set-up now for Plastic Molding, Heated
Platens, Dwell Time Monitor, Press Force Monitor, Top Mounted
Hydraulics.



CATALOGUE SPECIFICATIONS:



Tonnage Capacity Down Stroke......................... 200 Tons
Tonnage Capacity Up Stroke........................... 75 Tons
Stroke Length........................................ 0 to 60"
Daylight, Maximum With 2" Platens................... 84"
Platen Area, L-R F-B................................. 48" x 50"
Distance Between Tie Rods F-B, L-R...................    " x "
Closing Speed Advance................................ 300 IPM
Pressing Speed....................................... 1 - 6.6 IPM
Breakaway............................................ 2-20 IPM
Return............................................... 300 IPM
Tie Rod Diameter.....................................  "
Hydraulic Motor...................................... 25 HP
Electrics............................................ 230/3/60
Floor Space with Guarding and Cabinet................ 78" x 105"
Approximate Machine Height........................... 20'9"
Approximate Machine Weight........................... 28,000 LBS



CONDITION: Appears to be in Excellent Condition !!
