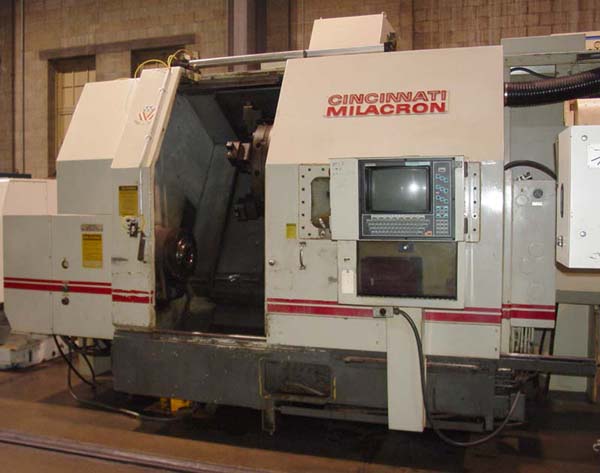

2216 x 40" CINCINNATI 'Heavy Duty' CNC TURNING CENTER
Model 2216-40 Series AM, New 1993
Stock# K12932
EQUIPPED WITH:

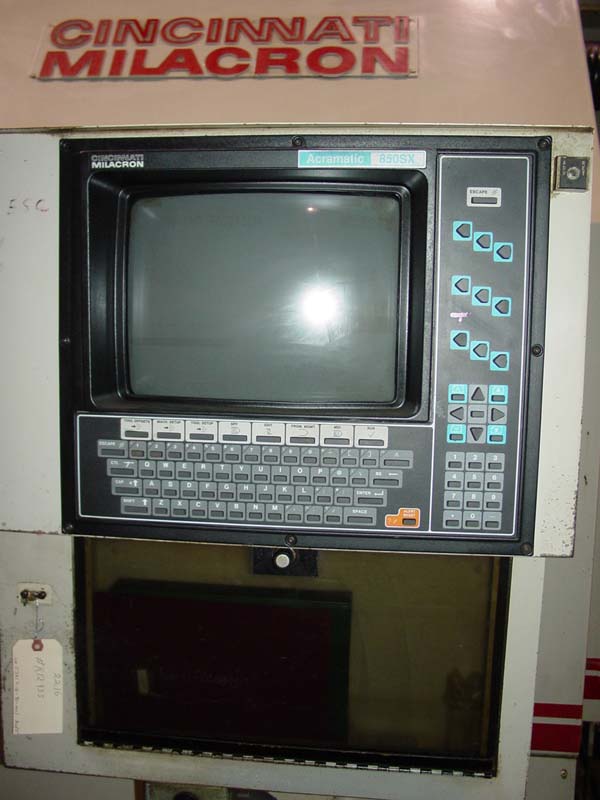

Acramatic 850SX CNC Control w/ Color CRT, Extended Multiple Part
Program
Storage, RS-232 Port, Programmable Tailstock, Heavy Duty Hardened &
Ground Ways, Heavy Duty Slant Bed Design, Tailstock, Chip Conveyor,
Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing over the Guarding............................. 33.8"
Max Swing Over Carriage ................................ 22.8"
Max Machinable Center Distance ......................... 40"
Cross Travel (X-Axis) .................................. 20.1"
Longitudinal Travel (Z-Axis) ........................... 40"
Tool Positions ......................................... 12
Spindle Bore ........................................... 4.5
Spindle Nose ........................................... A1-11
Feed Range (Infinitely Variable) ....................... 0-200 IPM
Rapid Traverse Rate .................................... 500 IPM
Spindle Speed Range .................................... 60-2000
Spindle Drive Motor .................................... 60 HP
Approximate Machine Dimension........................... 200" x 114"
Approximate Machine Height.............................. 122"
Approximate Machine Weight.............................. 32,000 LBS
Condition: Appears To Be in Very Good Condition !
