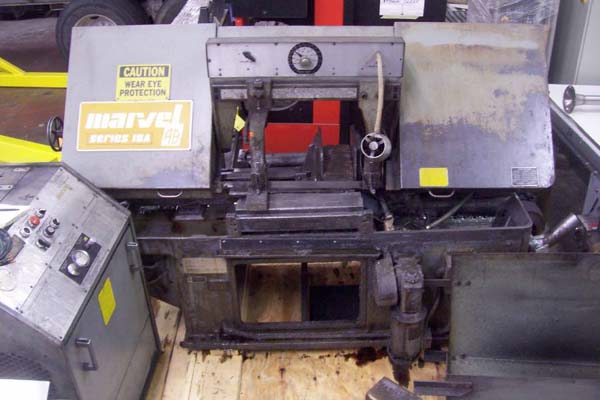

MODEL 15 MARVEL HEAVY DUTY HORIZONTAL BAND SAW
                  S/N F-151850-W, New 1990, Stock # K12939

 EQUIPPED WITH:



Hydraulic Vise, Hydraulic and Manual Blade Tension Adjustment, Carbide
Blade Guides, Variable Speed Blade Controller, Quick Adj. Blade
Guide Arms, Work Height Selector, Hydraulic Down Feed Compensator
Controls.


CATALOGUE SPECIFICATIONS:



Nominal Capacity........................................ 15"x20"
Blade Speeds, Infinitely Variable....................... 55-400 FPM
Hydraulic Feed, Compensation, Infinitely Variable....... 0-200 Lbs.
Blade Drive Motor....................................... 5 HP
Hydraulic Motor......................................... 2 HP
Blade Length............................................ 15'6"
Maximum Blade Width..................................... 1-1/4"
Electrics............................................... 220/440/3/60
Approximate Dimensions.................................. 86" X 130"
Approximate Height...................................... 91"
Approximate Weight...................................... 5,000 Lbs.



CONDITION: Machine is Available for Inspection Under Power. Appears to
           be in Very Good Condition!
