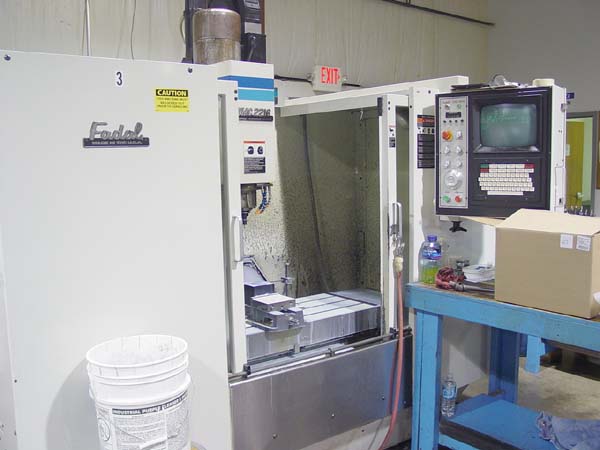

FADAL CNC VERTICAL MACHINING CENTER
Model 2216, S/N 9505777, New 1995
Stock # K12941
EQUIPPED WITH:

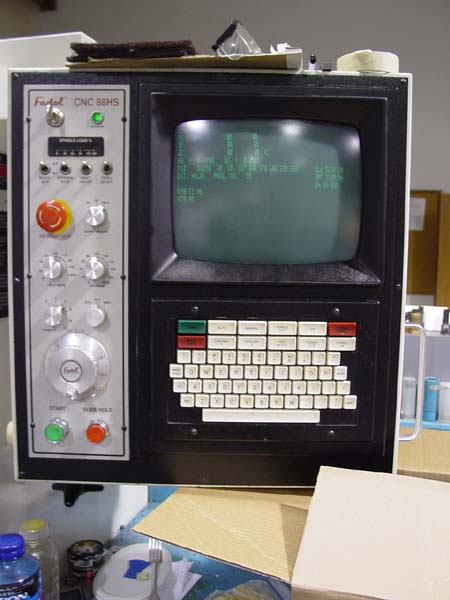

Fadal CNC Control, RS-232 Port, Multiple Part Program Storage,
Self Diagnostics, 21 Station Automatic Tool Changer, Axis Error
Compensation, Full Enclosure, Coolant and Chip System.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 39" x 16"
Table Load Capacity................................... 1,000 LBS
Longitudinal Travel (X-Axis).......................... 22"
Cross Travel (Y-Axis)................................. 16"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 10-10,000
RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 87" x 106"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 8,300 LBS
CONDITION: Appears to be in Very Good Condition !
