MAIN SPINDLE
TAPER OF SPINDLE
NOSE: ASA A2-8
DIAMETER OF SPINDLE
BORE: 3.54"
TAPERED
BORE: 4.33" X
1/10 TAPER
SPINDLE
CENTER: MT NO. 5
NUMBER OF SPEEDS &
RANGES: INFINITELY VARIABLE X AUTO 4 RANGES
SPINDLE
SPEEDS: 20 TO
2,200 RPM

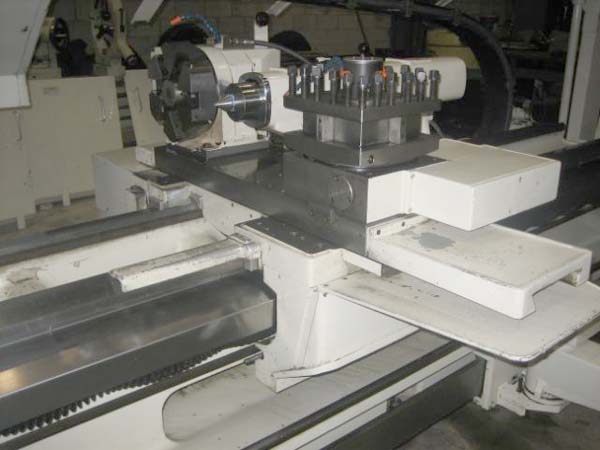

TURRET
TYPE:
AUTOMATIC H4 (FRONT) + V6 (REAR)
NUMBER OF TOOL
STATIONS: 10 (4 + 6)
CARRIAGE (Z-AXIS)
CARRIAGE
TRAVEL: 118.31"
RANGE OF CUTTING FEEDRATES:
0.0001 TO 40 IPR
RAPID TRAVERSE
SPEED: 394 IPM
CROSS-SLIDE (X-AXIS)
CROSS-SLIDE
TRAVEL: 15.94"
RANGE OF CUTTING FEEDRATES:
0.0001 TO 40 IPR
RAPID-TRAVERSE
SPEED: 197 IPM
TAILSTOCK (HYDRAULIC)
QUILL
DIAMETER: 3.94"
QUILL
TRAVEL:
4.92"
(3.15" BY HYDRAULIC + 1.77" BY MANUAL)
TAPERED
BORE: MT #5
BED
LENGTH:
175.20"
WIDTH: 18.50"
ELECTRIC MOTOR
MAIN SPINDLE DRIVE
MOTOR: VAC 29.5/20.1 HP (30 MIN/CONT)
HYDRAULIC OIL PUMP DRIVE
MOTOR: 2.0 HP 4P
HEIGHT OF
MACHINE: 69"
FLOOR SPACE:
124" X 270"
NET WEIGHT OF
MACHINE: 14,080 LBS
ELECTRICS:
220/480 VOLTS, 3 PH, 60 CYC
EQUIPPED WITH:
OSPU100L CNC CONTROL
15" KITAGAWA HYDRAULIC CHUCK
IGF CONVERSATIONAL PROGRAMMING
CHIP CONVEYOR
