TOYODA ERNAULT CNC TURNING CENTER
Model GT 52, New 1992, S/N 52249
Stock# K12954
EQUIPPED WITH:
Fanuc 15T CNC Control, Multiple Part Program Storage, RS-232
Port,

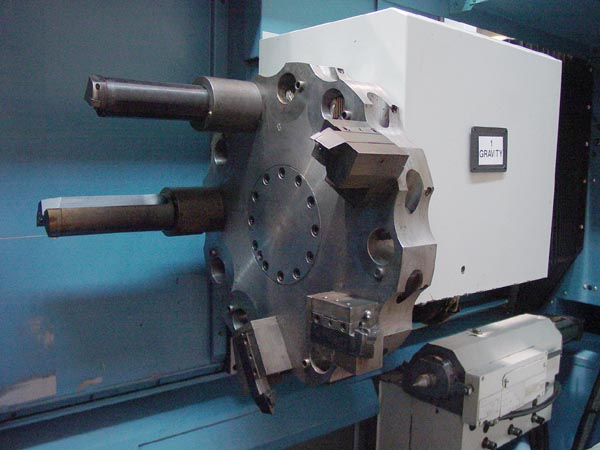

12" 3-Jaw Chuck, (12) Position Tool Turret, Programmable
Tailstock,

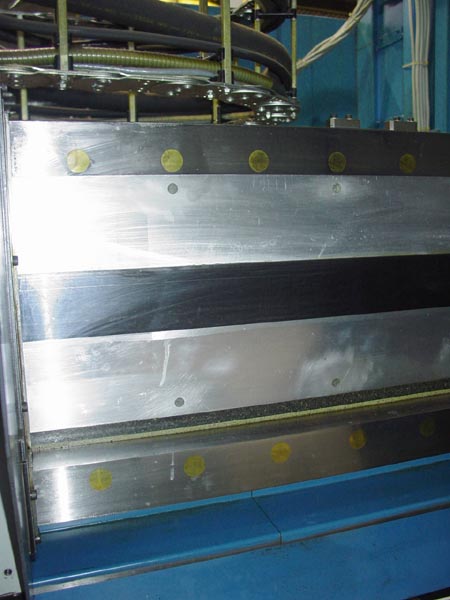

Heavy Duty Box Way Construction, 4 Rage Geared Headstock, Chip
Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
18.89"
Max Swing Over Carriage.................................
15.74"
Max Turning Diameter Between Centers....................
12.99"
Max Tailstock Position Spindle Nose to Tailstock........ 57.7"
Max Machinable Center Distance w/ Standard Chuck........
46.37"
Standard Chuck Size..................................... 12
Cross Travel (X-Axis)...................................
14.37"
Longitudinal Travel (Z-Axis)............................
52.16"
Feed Range (Infinitely Variable)........................
.1-472 IPM
Rapid Traverse Rate (X-Axis)............................ 472
IPM
Rapid Traverse Rate (Y-Axis)............................ 472
IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12
Total
Spindle Bore............................................ 3.12"
Spindle Nose............................................ A-8
Spindle Speed Range (1 RPM Increments)..................
50-4000 RPM
Spindle Horsepower...................................... 30 HP
Approximate Machine Dimensions.......................... 145"
x 100"
Approximate Machine Height.............................. 113"
Approximate Machine Weight..............................
25,000 LBS
CONDITION: From a Large Aerospace Manufacture. Very Low Hours
!
Machine Appears to be in Excellent Condition !
