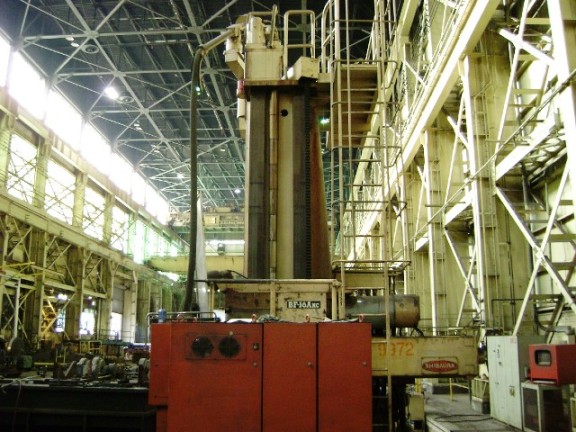

6.3" TOSHIBA SHIBAURA BF-16A(NC) FLOOR TYPE
HORIZONTAL BORING MILL
374" X, 137.8" Y, 47.2" Z, 50 Taper, 36" Facing Head,
Tooling,
Fanuc 9 CNC 4 axis, 1982, Stock # K12958
SERIAL NUMBER:
143781
MODEL: BF-16A(NC)
YEAR: 1983
EQUIPPED WITH:
Fanuc System 9 CNC 4 Axis Control
s/n: 7059620
Year: 1981-12
type: A02B-0055-B002
Fujitsu Fanuc ltd made in Japan

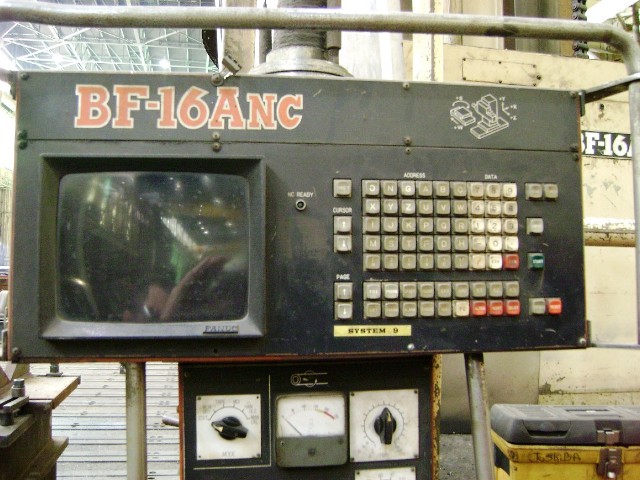

Full Pendant Control For Manual Operation
Inductosyn Feedback Scale on X-Axis
36" Facing Head
Tooling
Resolver on Y & Z Axes
Hardened Ways
Telescopic Steel Way Covers
Full Length Chip Conveyor (2hp)
Ball Screws & Independent Drives
40/50 HP Spindle Drive 220/3/60
CATALOG SPECIFICATIONS:
Spindle Diameter .................................. 6.3"
Milling Spindle Diameter........................... 8.7"
Spindle Nose Taper ................................ ISO No. 50 Taper
Vertical Head Travel, Y ........................... 137.8"
Column Travel, X .................................. 374"
Spindle Travel, Z ................................. 47.2"(normal
39.4")
Spindle Speeds, 3-Steps, Continuous ............... 10-1250 RPM
Spindle Feeds ..................................... 0.1-150 IPM
Rapid Traverse, Spindle, Z ........................ 150 IPM
Feeds, X & Y Axes ................................. 0.1-150 IPM
Rapid Traverse X & Y Axes ......................... 230 IPM
Electrics.......................................... 220V, 3Ph, 60 Hz
Motor.............................................. 40 HP DC
continuously
50 HP DC 30
minutes
Overall Machine Height ............................ 334.7"
Floor Space Required .............................. 184" x 670"
Machine Weight, Not Including Tables .............. 103,400 LBS.
approx.
