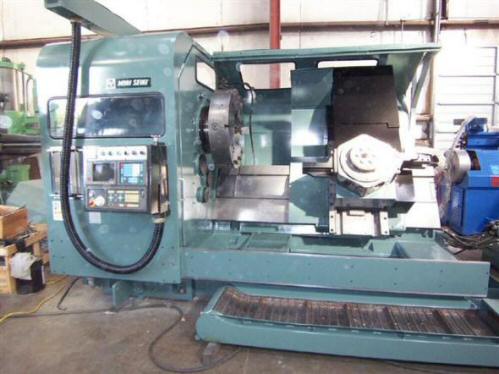

MORI SEIKI SL-8 CNC Turning
Center with Fanuc OT CNC Control
SPECIFICATIONS:
Swing Over Bed........................... 51.1"
Swing Over Carriage...................... 43.3"
Maximum Machining Diameter............... 51.1"
Maximum Longitudinal Travel.............. 43.3"
Maximum Cross Travel..................... 16.5"
Spindle Motor ........................... 50 HP
Speeds (3 steps)......................... 1 - 143 RPM
Hole Through Spindle..................... 8 1/2"
Spindle Nose............................. A2-15

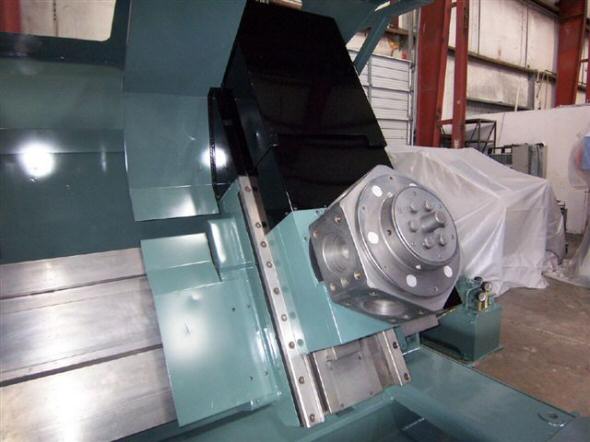

Number of Tools.......................... 6 Station Turret
Weight................................... 37,000 Lbs.
EQUIPPED WITH:

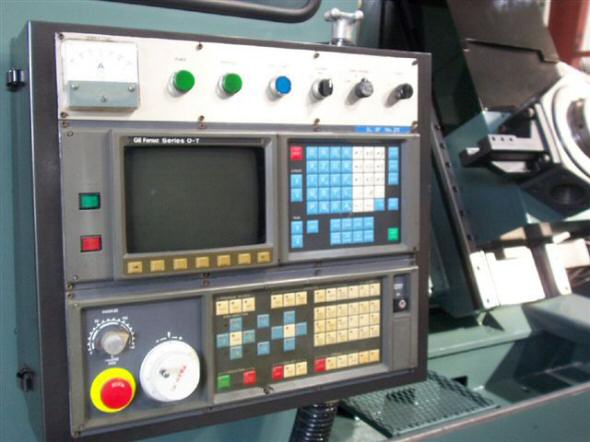

Fanuc 0-TC CNC
Fanuc Red Cap Servo Drives
32" 3 Jaw Scroll Chuck
Misc. Tool Holders
Chip Conveyor
Way Covers
