Stock Number K12963

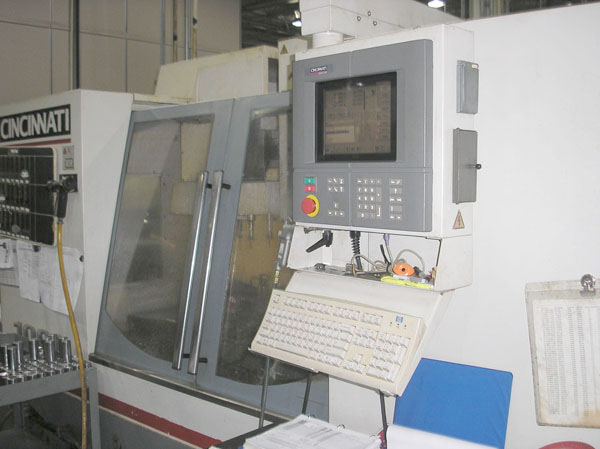

  CINCINNATI ARROW MODEL 1000 CNC VERTICAL MACHINING CENTER
         Serial Number: 7049-A00-KT0937       (New 2001)



       EQUIPPED WITH:
         Acramatic 2100 CNC Control
         Tsudakoma RN150 4th Axis
         15HP Spindle Motor
         (21) Position Automatic Tool Changer
         Full Enclosure

CATALOG SPECIFICATION:
        Table Size:  44" x 22"
        X-Axis Travel:  40"
        Y-Axis Travel:  20"
        Z-Axis Travel:  22"
        Spindle Speeds: 60-5000 RPM
        Spindle Taper:  CAT-40
        Tool Changer:  21 ATC
        Approximate Overall Dimensions:     96" x 123" x 92"H
        Approximate Weight:     7000 lbs
