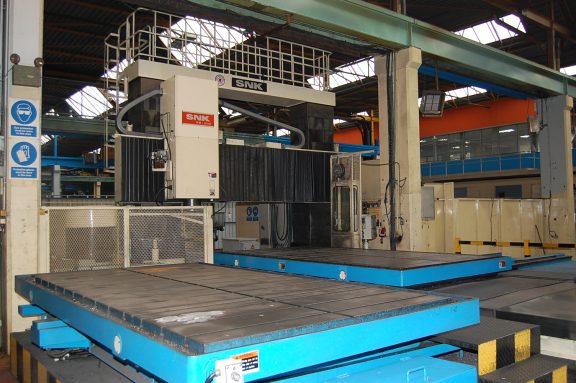

SNK CNC
Bridge Type Vertical Machining Center
Model: RB-4 5-Face
Serial Number: 98K1881
Age: 1998
Fanuc 18M 4-Axis CNC Controls
Pallet Shuttle System
TRAVELS:
X-Axis, Table Travel .................. 167.32"
Y-Axis, Spindle Head Travel ........... 114.17"
Z-Axis, Qill Stroke ................... 23.62"
W-Axis, Cross Rail Vertical Travel..... 55.11"
SPECIFICATIONS:
Distance Between Columns .............. 114.17"
Distance Spindle to Pallet Surface .... 0 to 61.02"
Pallet Size (2) ....................... 78.74" x 157.48"
Pallet Weight Capacity ................ 22,100 lbs
Rapid Traverse, X & Y Axes ............ 787.40 IPM
Cutting Feed, X & Y Axes .............. 0.0393 to 393.7
IPM
Rapid Traverse, Z-Axis (Quill) ........ 314.96 IPM
Cutting Feed, Z-Axis (Quill) .......... 0.0393 to 236.22
IPM
Rapid Traverse W-Axis (Cross Rail) .... 236.22 IPM
Cutting Feed W-Axis (Cross Rail) ...... 0.0393 to 236.22
IPM
Fine Feed, X, Y, Z, & W Axes .......... 0.0000393 IPM
Spindle / Quill Diameter .............. 3.54"/11.81"
Spindle Speeds ........................ 40-6000 RPM
Spindle Nose Taper .................... ISO #50
Spindle Motor, Low Speed Area ......... 24.8 HP / 29.5
HP
Spindle Motor, High Speed Area ........ 29.5 HP / 33.5
HP
EQUIPPED WITH:
Fanuc 18MB 4-Axis CNC Control
40 Station Automatic Tool Changer
2-Pallet Shuttle System
Right Angle Milling Head
Programmable CNC Cross Rail
AC Servo Feed Motors on X,Y,Z & W Axes
Power Requirements: 200/220 Volt 50/60 Cycle 3-Phase 75
KVA
Machine Weight: 145,860 Lbs
