OKUMA CROWN 762E
CNC LATHE
NEW: 1998
EQUIPPED WITH:
* OKUMA OSP-700L CNC CONTROL
* CHIP CONVEYOR

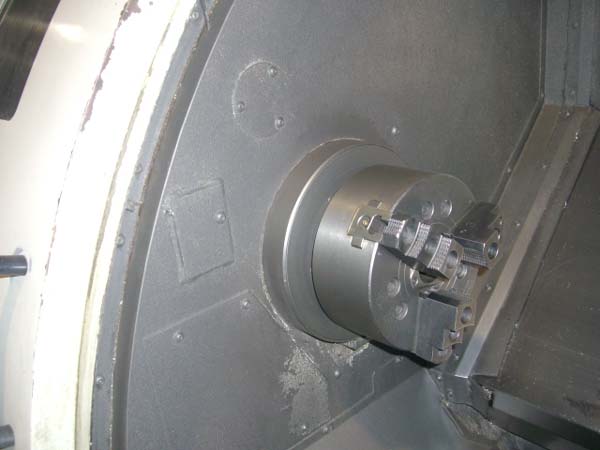

* 8" 3-JAW KITAGAWA HYDRAULIC CHUCK
CATALOG SEPCIFICATIONS:
SWING OVER BED.........................21.65"
SWING OVER CROSS SLIDE.................15.75"
MAX. TURNING DIAMETER..................10.63"
SPINDLE NOSE...........................A2-6
SPINDLE BORE...........................2.4"
RANGE OF SPEEDS........................75 TO 4,200 RPM
SPINDLE MOTOR..........................12 HP
Z-AXIS TRAVEL..........................20.47"
X-AXIS TRAVEL..........................7.28"
FEED RATE (X & Z AXIS).................0.0001 TO 39.37 IPR
RAPID FEED RATE (X / Z AXIS)...........591 / 784 IPM

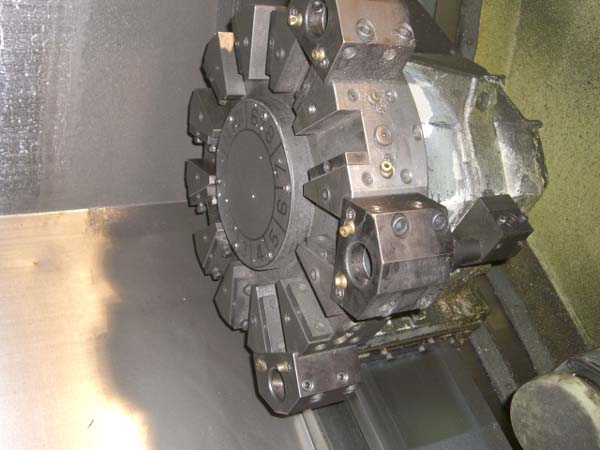

TURRET.................................12 POSITIONS
TAILSTOCK QUILL DIAMETER...............3.54"
TAILSTOCK QUILL STROKE.................4.72"
FLOOR SPACE REQUIRED......95" X 71"
MACHINE WEIGHT............10,000 LBS
