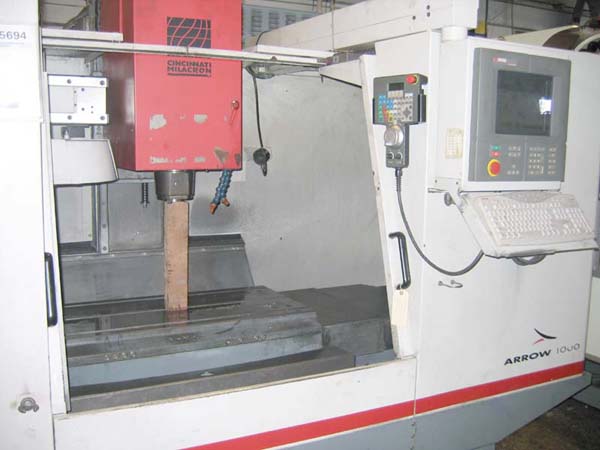

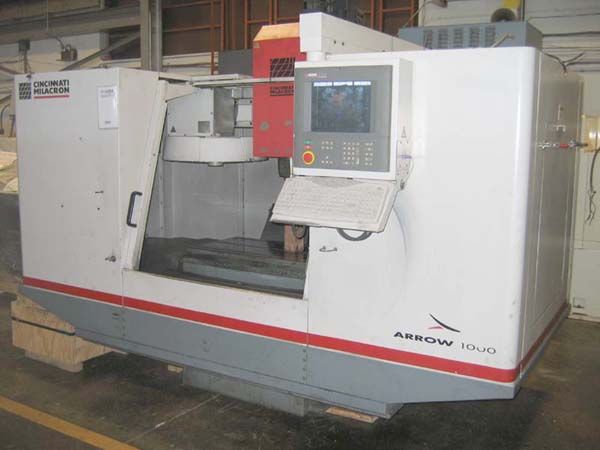

CINCINNATI ARROW 1000 CNC VERTICAL MACHINING CENTER
S/N 7049-AOB98-0465, NEW 1998
EQUIPPED
WITH:
ACRAMATIC ( VICKERS ) 2100 CNC CONTROL ( WINDOWS BASED
)
FULL
ENCLOSURE
21 POSITION AUTOMATIC TOOL
CHANGER
COOLANT
SYSTEM
REMOTE HAND HELD PENDANT
CONTROL
RS232
PORT
WORK
LIGHT
CHIP
CONVEYOR
AUTOMATIC LUBRICATION
SYSTEM
;CATALOG SPECIFICATIONS:
TABLE SIZE ---- ( WORKING SURFACE ) ------- 44" X 20"
TRAVELS:
LONGITUDINAL- ( TABLE, X-AXIS ) --------- 40"
CROSS ------- ( SADDLE, Y-AXIS ) -------- 20"
VERTICAL ---- ( SPINDLE CARRIER, Z-AXIS ) 22"
SPINDLE SPEED RANGE ----------------------- 60 TO 8000 RPM
SPINDLE TAPER ----------------------------- CAT. 40
FEED RATES ---------- ( X, Y, Z ) --------- .1 TO 590 IPM
RAPID TRAVERSE RATE - ( X, Y, Z ) --------- 944 IPM
TOOL CHANGER POSITIONS -------------------- 21
MAXIMUM TABLE LOAD ------------------------ 2,200 LBS.
SPINDLE DRIVE ----------------------------- 15 HP A.C.
APPROXIMATE MACHINE WEIGHT ---------------- 9,600 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 138"(LR) X 83"(FB) X
109"(H)
