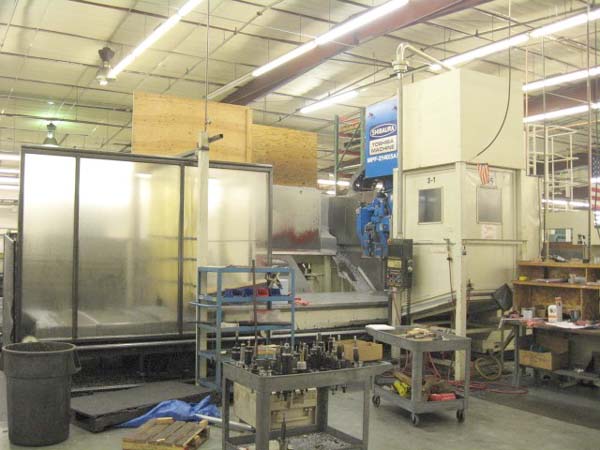

TOSHIBA 5-Axis Double Column Machining Center
Age 1999, Model: MPF-2140
Table Working Surface ................. 70.9" x 157.5"
Distance Between Columns .............. 82.7"
TRAVELS:
X-Axis Table .......................... 177"
Y-Axis Head Cross Travel .............. 82.7"
Z-Axis Vertical Spindle Head .......... 23.6"
A-Axis Spindle Swivel ................. +/-30 Degrees
B-Axis Spindle Tilt ................... +/-30 Degrees
SPECIFICATIONS:
Spindle Speeds ........................ 50 to 12,000 RPM
Spindle Taper ......................... CAT 50
Spindle Motor ......................... 60/50 HP
Distance Table Top to Spindle Nose .... Max. 31.5"
Rapid Traverse, X & Y Axes ............ 787.4 IPM
Rapid Traverse, A & B Axes ............ 939.7 IPM
Feed Rate X,Y,Z Axes .................. 0.04 to 393.7 IPM
Table Load Capacity ................... 44,000 LBS
Maximum Torque ........................ 722.7N-m 535 ft
lbs
EQUIPPED WITH:
New spindle installed 2/08 (last month)

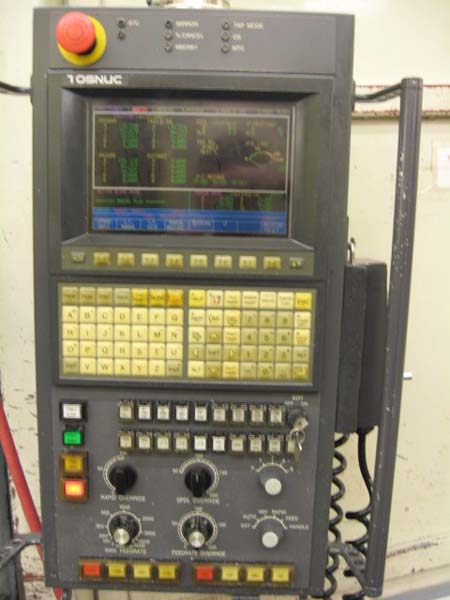

TOSNUC 888 5-Axis CNC Control
30 Station Automatic Tool Changer
Swing Type Pendant
Air Blow
Chip conveyors
50 HP / 60 HP Spindle Motor
Approx. Floor Space: 232 x 504" x 197" H
