EQUIPPED WITH

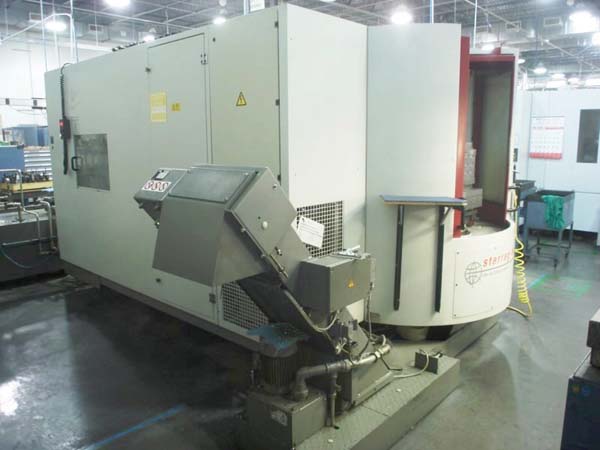

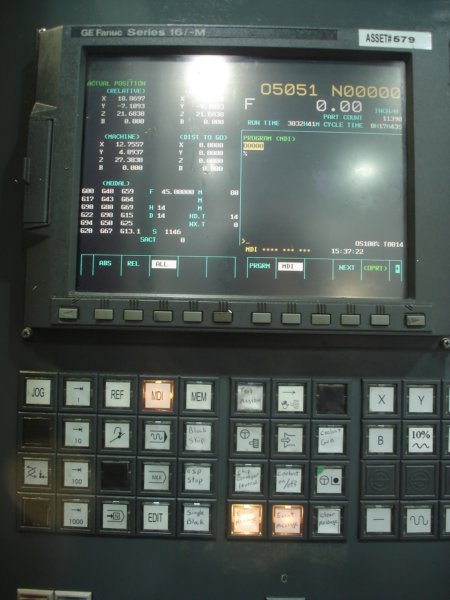

GE Fanuc 16i-M Control, Coolant Through Spindle, RS232 Port, Rigid Tapping, Chip Conveyor,

Full Enclosure, Large Capacity Coolant tank w/Filter & Skimmer, Work Light, Manuals



SPECIFICATIONS

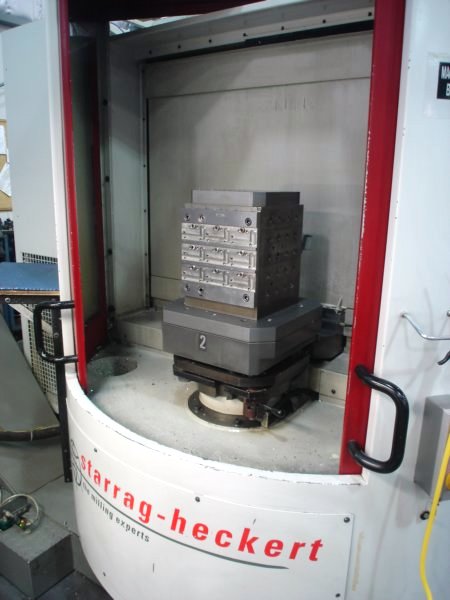

Pallet Size (2)                                       16" (400mm x 400mm)
Pallet Load                                           880 Lbs (400kg)
Pallet Change Time                               8 Sec
Travels
     X                                                    25.6" (650mm)
     Y                                                    19.7" (500mm)
     Z                                                    25.6" (650mm)
B-Axis Rotation                                   .001 @ 25RPM

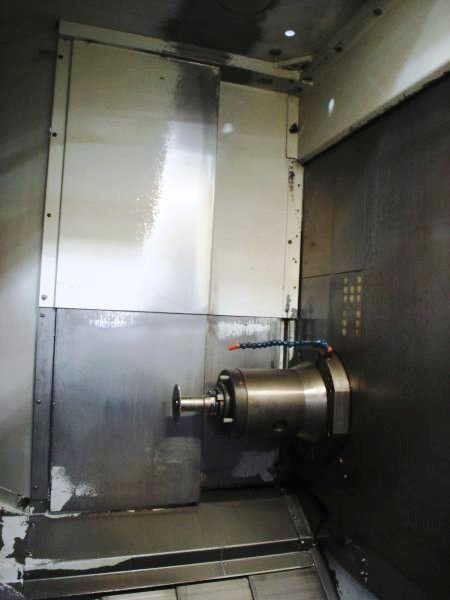

Spindle Speed                                     10,000 RPM
Spindle Taper                                      Cat 40

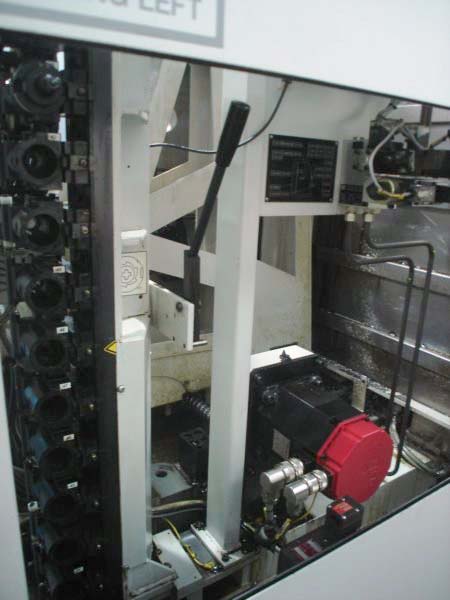

Tool Changer                                      60 ATC
Tool Change Time                               5 Sec
Max Tool Weight                                22 Lbs (10 Kg.)
Max Work Piece Height                      29.53"  (750 mm)
Approx. Dimensions                            192" x 130" x 108"H
Approx. Dimensions (Metric)              4.87M x 3.3M x 2.74M
Approx. Weight                                  29,000 Lbs (13,154 Kg.)
