20HC-2500 CINCINNATI MILACRON CNC HORIZONTAL MACHINING CENTER
New 1980's, Retrofit 2004, Stk No: K12981

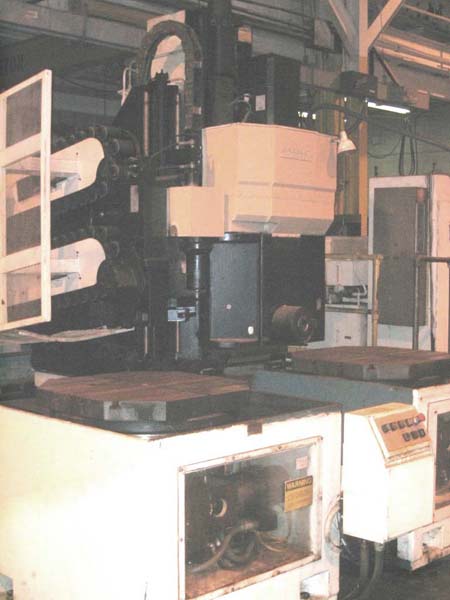

Note: This is a Traveling Column Type Machine Which Can be Operated
as
a Big 100" Machine by Bridging the Pallet Modules with a
Fixture
or it Can Be Operated as a Pallet Type Machine for Smaller
Work.
EQUIPPED WITH:

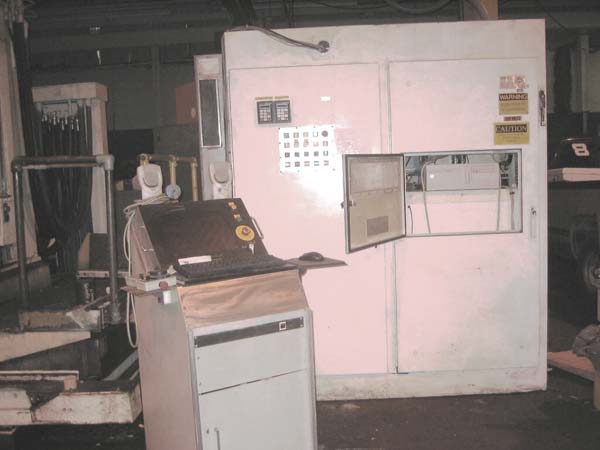

Cam Soft PC Based CNC Control, (2) 32" One Degree Indexing Pallet
Modules, 60 Station Chain Type Automatic Tool Changer Option, Heavy
Duty
60 PH Spindle Motor, Cat 50 Taper, Coolant Splash Guards, Probe
Option,Chip Conveyor.
CATALOGUE SPECIFICATIONS:
X Axis Travel (Cross)............................... 100"
Y Axis Travel (Vertical)............................ 48"
Z Axis Travel (Transverse).......................... 44"
Pallet Station Size ................................ 32" sq.each
Degree Indexing of Pallets ......................... 1 deg.
Increments
Pallet Load Capacity ............................... 5,000 lb. each
Spindle Horsepower ................................. 60 HP
Spindle RPMS ....................................... 20-3300
Spindle Taper....................................... #50-V (Cat)
Station ATC, Random Selection, 4 Sec. Change........ 60 Tools
Programmable Feed Rates............................. .2 to 150 IPM
Rapid Traverse...................................... 400 IPM
Electrics (Currently)............................... 460-3-60
Aprox. Weight ...................................... 55,000 lbs.
Condition: Machine Appears to be in Excellent Condition!
