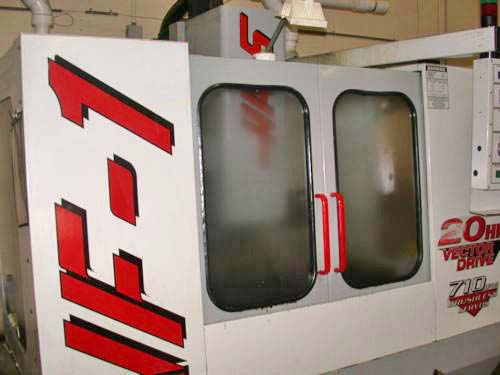

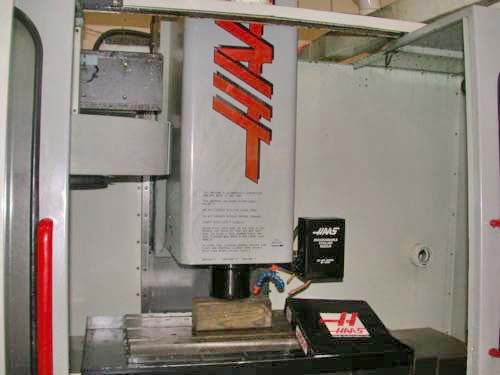

HAAS VF-1 CNC VERTICAL MACHINING CENTER
Model VF-1, S/N 12776, Bult 12/97 Delivered 2/98
Stock# K12982
EQUIPPED WITH:

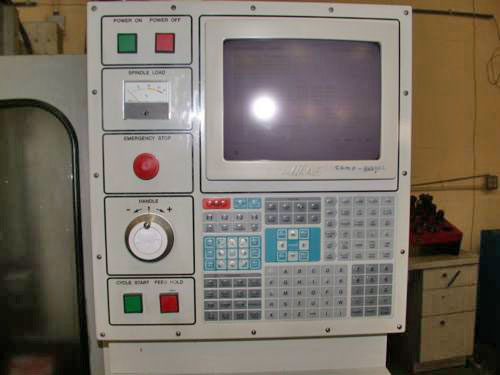

HAAS CNC Control w/CRT, 20 HP Vector Spindle Drive, Graphics, Metal
Way
Covers, Load Meter, Automatic Lube System, Work Light, Programmable
Coolant Nozzle, Rigid Tap, 4th Axis Prewire Including Drive,
Coordinate Rotation and Scaling, Macros, Floppy Drive, Flood Coolant
System, With Full Chip-Splash Enclosure,
Chip Auger.
CATALOGUE SPECIFICATIONS:

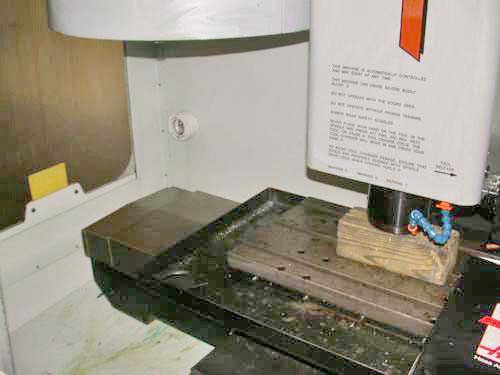

Table Working Surface............................. 14" x 26"
Table Load Capacity............................... 750 LBS
Longitudinal Travel (X-Axis)...................... 20"
Cross Travel (Y-Axis)............................. 16"
Vertical Travel (Z-Axis).......................... 20"
Maximum Clearance Table Top to Spindle Nose....... 24"
Feed Rates, All Axes.............................. 0 to 400 IPM
Rapid Traverse Rate, All Axes..................... 710 IPM
Tool Storage Capacity............................. 20
Spindle Horsepower................................ 20 HP
Spindle Speeds Range.............................. 0-7500 RPM
Spindle Taper..................................... No. 40 CAT
Electrics......................................... 230/460/3/60
Approximate Machine Dimensions.................... 73" x 95"
Approximate Machine Height........................ 96"
Shipping Height................................... 68"
Approximate Machine Weight........................ 7,400 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
