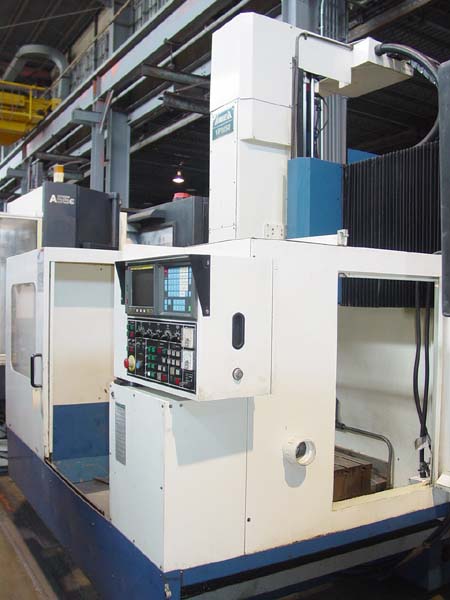

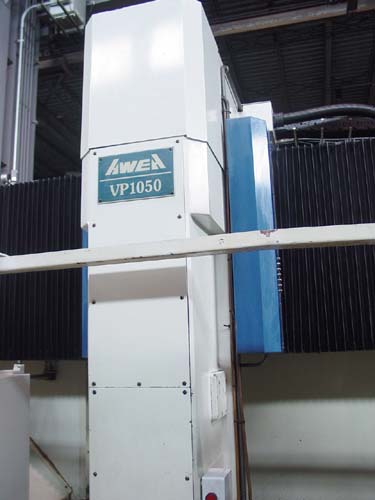

AWEA VP1050 CNC VERTICAL MACHINING CENTER
                         Model VP1050, New 1995
                             Stock # K12983



EQUIPPED WITH:
Fanuc 0M CNC Control, RS-232 Port, Multiple Part Program Storage, Self
Diagnostics, 24 Station Automatic Tool Changer, Heavy Duty Bridge Style
Design, 2 Range Geared Spindle, Manual Pulse Generator, Axis Error
Compensation, Cutter Compensation, Full Enclosure, Chiller, Coolant

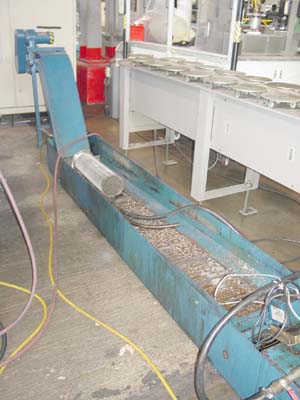

System and Chip Conveyor.



CATALOGUE SPECIFICATIONS:

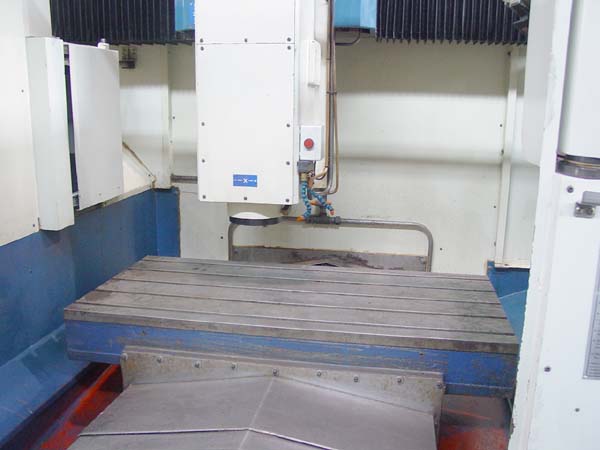

Table Working Surface................................. 49.25" x 23.5"
Table Load Capacity................................... 4,645 lbs
Longitudinal Travel (X-Axis).......................... 41.3"
Cross Travel (Y-Axis)................................. 23.6"
Vertical Travel (Z-Axis).............................. 21.6"
Spindle Nose to Table................................. 7" - 28.6"
Rapid Traverse Rate (X & Y-Axes)...................... 787 IPM
Rapid Traverse Rate (Z-Axis).......................... 200 IPM
Tool Storage Capacity................................. 24
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 10-4000 RPM
Spindle Taper......................................... #40 BT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 6'3" x 8'2"
Approximate Machine Height............................ Max 10'8"
Approximate Machine Weight............................ 17,000 LBS



CONDITION: Appears to be in Excellent Condition !
