CINCINNATI 5-AXIS CNC VERTICAL PROFILING/CONTOURING MACHINING CENTER
                  Model 20V-120, New 1987, Retrofit 2007
                                Stock# K12990



EQUIPPED WITH:

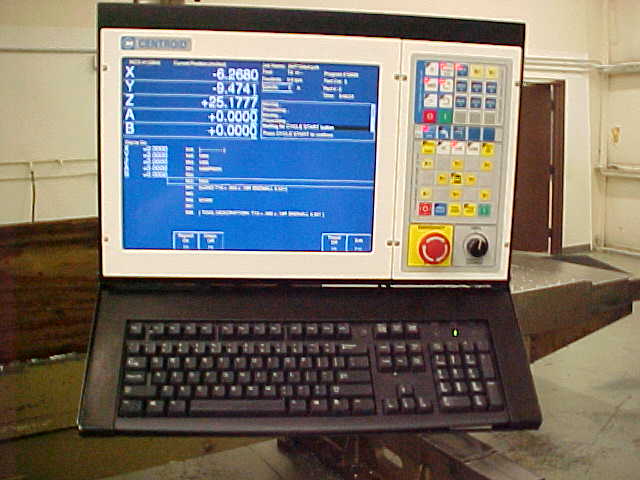

Centroid M400 PC Based CNC 5-Axis Simultaneous Contouring Control,
Tool Management,  Cutter Compensation, Flood and Mist Coolant, RS-232
Port.



CATALOGUE SPECIFICATIONS:



Table Working Surface, W x L............................ 30" x 148"
Table Load Capacity..................................... 10000 LBS
A Axis Spindle Carrier Tilt (+25 to - 25) .............. 50 Degrees
B Axis Spindle Carrier Swivel (+25 to -25).............. 50 Degrees
X Axis Table Longitudinal Travel........................ 120"
Y Axis Saddle Cross Travel.............................. 30"
Z Axis Spindle Carrier Vertical Travel.................. 24"
Spindle Taper........................................... #50 CAT
Spindle Nose to Table Max............................... 29"
Spindle Speeds, Infinite Range.......................... 20 to 3600 RPM
X,Y, & Z Axis Feeds, Range.............................. 0 to 250 IPM
A & B Axis Feedrates, Range, Degrees Per Minute......... 0 to 240 DPM
Spindle Motor........................................... 20 HP
Approximate Machine Dimensions.......................... 204"x314"
Approximate Machine Height.............................. 140"
Approximate Machine Weight.............................. 48,000 LBS



CONDITION:  Machine Appears to Be in Excellent Condition !
