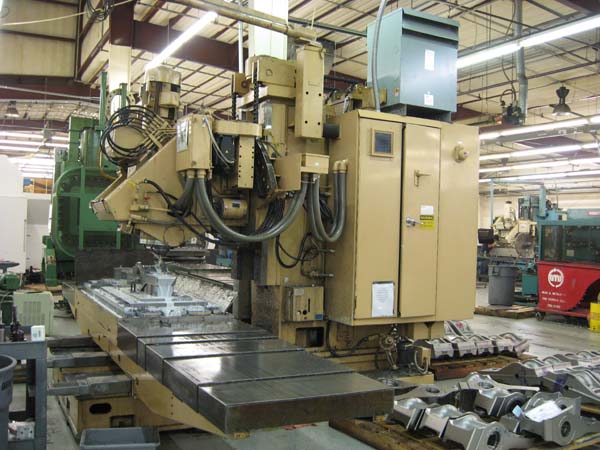

CINCINNATI 5-AXIS CNC VERTICAL PROFILING/CONTOURING MACHINING CENTER
Model 20V-80, New 1986, Retrofit 2006
Stock# K12991
EQUIPPED WITH:
Centroid M400 PC Based CNC 5-Axis Simultaneous Contouring Control,
Tool Management, Cutter Compensation, Flood and Mist Coolant,
RS-232
Port.
CATALOGUE SPECIFICATIONS:
Table Working Surface, W x L............................ 30" x 96"
Table Load Capacity..................................... 7500 LBS
A Axis Spindle Carrier Tilt (+25 to - 25) .............. 50 Degrees
B Axis Spindle Carrier Swivel (+25 to -25).............. 50 Degrees
X Axis Table Longitudinal Travel........................ 80"
Y Axis Saddle Cross Travel.............................. 30"
Z Axis Spindle Carrier Vertical Travel.................. 24"
Spindle Taper........................................... #50 CAT
Spindle Nose to Table Max............................... 29"
Spindle Speeds, Infinite Range.......................... 20 to 3600
RPM
X,Y, & Z Axis Feeds, Range.............................. 0 to 250
IPM
A & B Axis Feedrates, Range, Degrees Per Minute......... 0 to 240
DPM
Spindle Motor........................................... 20 HP
Approximate Machine Dimensions.......................... 204"x314"
Approximate Machine Height.............................. 140"
Approximate Machine Weight.............................. 42,000 LBS
CONDITION: Machine Appears to Be in Excellent Condition !
