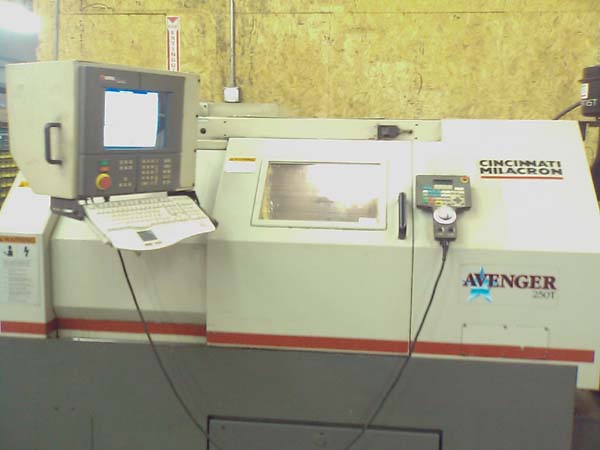

CINCINNATI MILACRON `AVENGER' CNC TURNING CENTER
Model 250T, New 1997
EQUIPPED WITH:
Acramatic 2100 PC Based CNC Control with Color CRT, Multiple Part
Program Storage, 10" Power Chuck, RS-232 Port, Tailstock Option
w/Programmable Body and
Quill, Auto Lube, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 23.54"
Max Swing Over Carriage................................. 10.55"
Max Tailstock Position.................................. 23.5"
Max Machinable Center Distance.......................... 20.87"
Standard Chuck Size..................................... 8.27"
Cross Travel (X-Axis)................................... 7.09"
Longitudinal Travel (Z-Axis)............................ 20.87"
Feed Range (Infinitely Variable)........................ .1-400
IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 944 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 30-5000
RPM
Spindle Horsepower...................................... 30 HP
Electrics...............................................
230/460/3/60
Approximate Machine Dimensions.......................... 104" x
68"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 10,300
LBS
CONDITION: Machine Appears to be in Excellent Condition!!
