EMCO ET-425MC CNC DUAL SPINDLE DUAL TURRET CNC TURNING CENTER
WITH LIVE TOOLING AND DUAL SUB SPINDLES
Model ET425MC, New 1996, Stock# K12995
EQUIPPED WITH:
Siemens 810T CNC Control with Color CRT, Continuous Path CNC
Control,
Linear and Circular Interpolation, Full Edit & Program Capability,
Dual C-Axis Main Spindles, Dual C-Axis Sub-Spindle, Live Tooling,
(2) 12-Position Tool Turrets with Driven `Live' Tools for Milling,
Drilling and Taping, Parts Ejector, (4) 5C Collet Chucks, (4) Driven
Live Toolholders, Large amount of Turning/Boring Holders, Collects
and

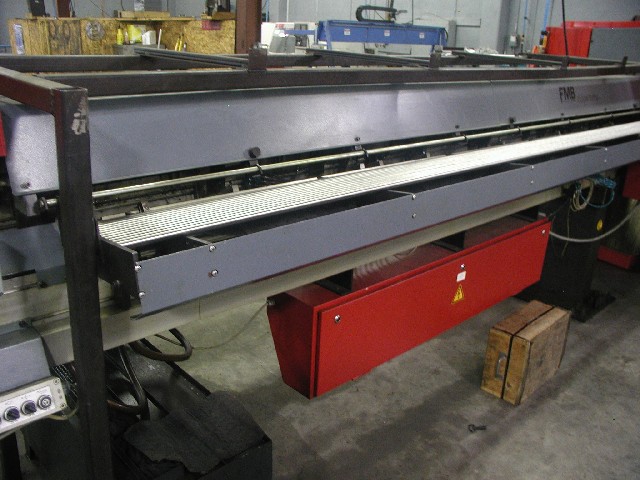

Other Tooling, Includes 12' FMB Twin Spindle Barfeeder, Coolant
System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Carriage................................. 6.3"
Max Machinable Distance Between Spindles................ 16.10"
Standard Chuck Size..................................... 6"
Bar Capacity Mainl Spindle.............................. 1.1"
Cross Travel (X-Axis)................................... 3"
Longitudinal Travel (Z-Axis)............................
7.5
Longitudinal Travel of Right Turrets (Z-Axis)........... 9.5"
Feed Rates ............................................. 472 IPM
Number of Turrets....................................... 2
Tool Positions.......................................... 24 Total
Maximum Main Spindle Speed ............................. 5000 RPM
Maximum Sub Spindle Speed............................... 5000 RPM
Maximum Rotary Tool Speed............................... 5000 RPM
Spindle Drive Motor..................................... 15 HP
Rotary Tool Drive Motor................................. 2 HP
Approximate Machine Dimensions.......................... 54" x 86"
Approximate Machine Height.............................. 70"
Approximate Machine Weight.............................. 5720 LBS
CONDITION: New Base Price $ 172,000. Appears to be in Excellent
Condition !
