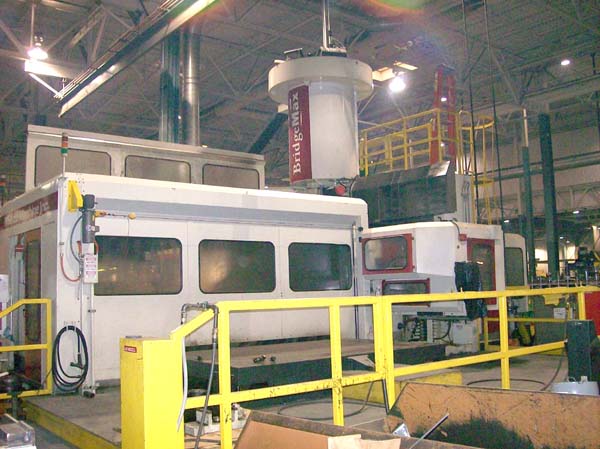

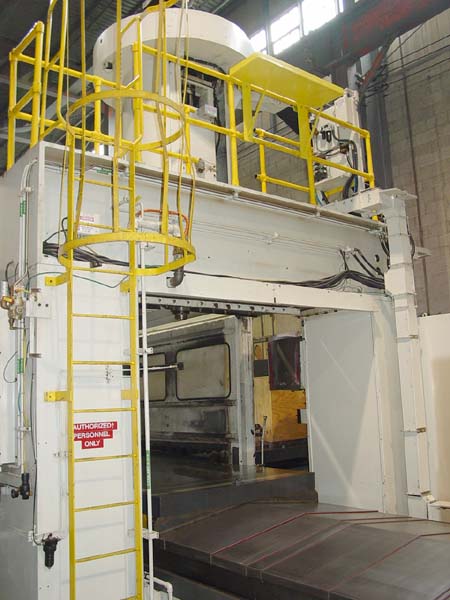

MASCO 2-PALLET BRIDGE TYPE CNC VERTICAL MACHINING CENTER

                     Model BridgeMax,  New 2001
                             Stock # K12997



EQUIPPED WITH:
Fanuc 16i CNC Control, RS-232 Port, Multiple Part Program Storage,
Self Diagnostics, Automatic Pallet Changer with (2) 72" x 120" Pallets,
Heavy Duty Geared Spindle with Cat-50 Taper, Automatic Head Changer with
Right Angle Head, C-Axis Head Rotation for 5-Sided Machining, 28 Station
Automatic Tool Changer that Services the Vertical Spindle, 24 Station
Automatic Tool Changer that Services the Horizontal Right Angle Head,
Heavy Duty Bridge Style Design, 2 Range Geared Spindle, Manual Pulse
Generator, Axis Error Compensation, Cutter Compensation, Full Enclosure,
Thru Spindle Coolant System and Chip Conveyor.



CATALOGUE SPECIFICATIONS:
Pallet Working Surface................................ 72" x 120"
Table Load Capacity................................... 22,000 lbs
Longitudinal Travel (X-Axis).......................... 185"
Cross Travel (Y-Axis)................................. 100"
Vertical Travel (Z-Axis).............................. 50"
Spindle Nose to Table................................. 10" - 60"
Distance Between Columns.............................. 110 "
Rapid Traverse Rate (X & Y-Axes)...................... 800 IPM
Rapid Traverse Rate (Z-Axis).......................... 400 IPM
Tool Storage Capacity (28 Vertical, 24 Horizontal).... 52
Spindle Horsepower.................................... 35 HP
Spindle Speeds Low Range.............................. 5 -1000 RPM
Spindle Speed High Range.............................. 750 - 3750 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 48'3" x 28'2"
Approximate Machine Height............................ Max
Approximate Machine Weight............................ 110,000 LBS



CONDITION: Appears to be in Excellent Condition !
