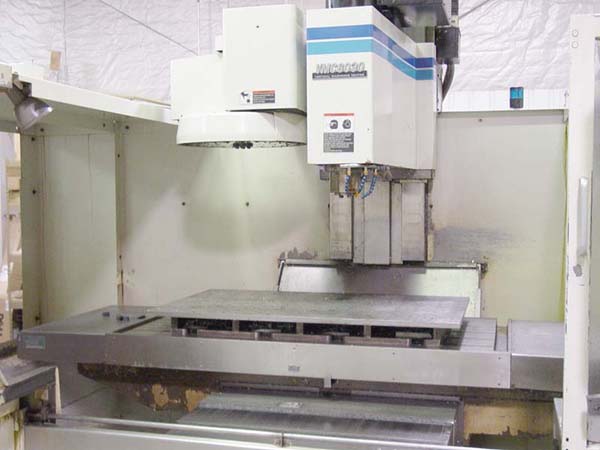

FADAL VMC 6030 CNC VERTICAL MACHINING CENTER
                 Model VCM6030, New 1996, S/N 9601747
                             Stock # K12999



EQUIPPED WITH:

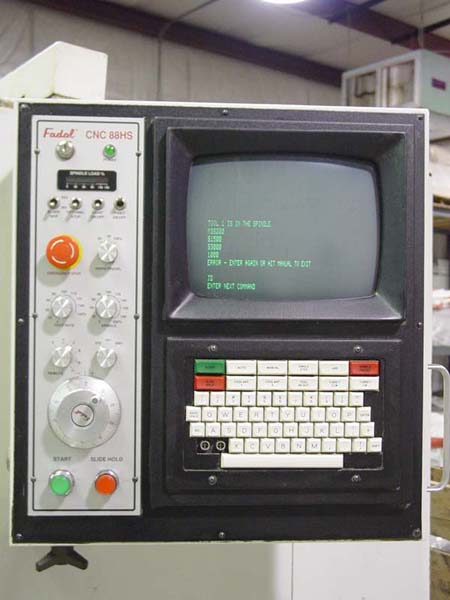

Fadal 88 CNC w/CRT, Manual Pulse Generator, High Speed CPU Option,
Graphics, 4th Axis Prewire, RS-232 Port, Multiple Part Program Storage,
Self Dianostics, Heavy Duty Box Ways, 21 Station Automatic Tool Changer,
Axis Error Compensation, Cutter Compensation, Liquid Cooled Spindle with
Chiller, Full Enclosure, Coolant and Chip System.



CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 62.5" x 30"
Table Load Capacity................................... 3,500 LBS
Longitudinal Travel (X-Axis).......................... 60"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 28"
Feed Rates (X & Y-Axes)............................... 0.1 to 250 IPM
Feed Rate (Z-Axis).................................... 0.1 to 250 IPM
Rapid Traverse Rate (X & Y-Axes)...................... 400 IPM
Rapid Traverse Rate (Z-Axis).......................... 400 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 22.5 HP
Spindle Speeds Range.................................. 40-10,000 RPM
Spindle Taper......................................... #40 Taper CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 103" x 158"
Approximate Machine Height............................ 119"
Approximate Machine Weight............................ 17,500 LBS



CONDITION: Appears to be in Very Good Condition. Machine has been run
and checked out by a Fadal expert. New Z-Axis Thrust Bearings Installed.
On Hours 15671. Running Hours 5531
