SNK 5-AXIS 3-SPINDLE GANTRY PROFILER
              Model PM-6B, New 1998
                      Stock# K13005



EQUIPPED WITH:

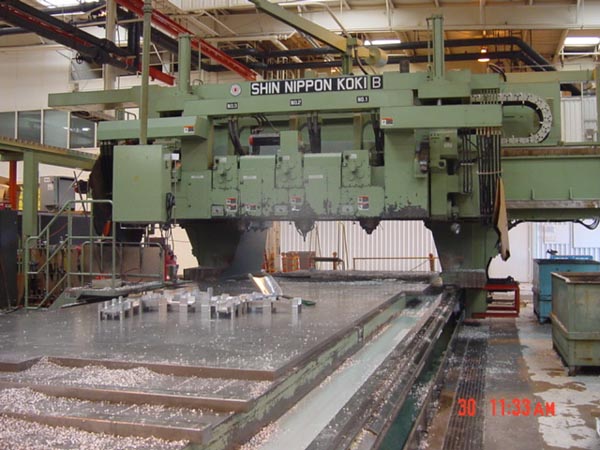

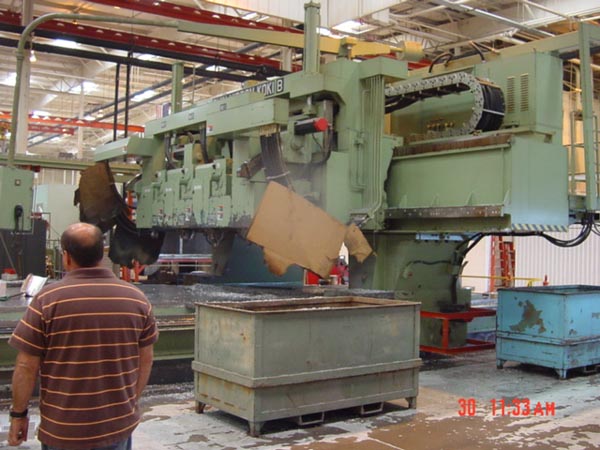

This Machine is a Twin Gantry 3-Spindle 5-Axis Profile. The Gantries
Share the same 120' Bed.  (2) Fanuc 15M CNC Controls, Full

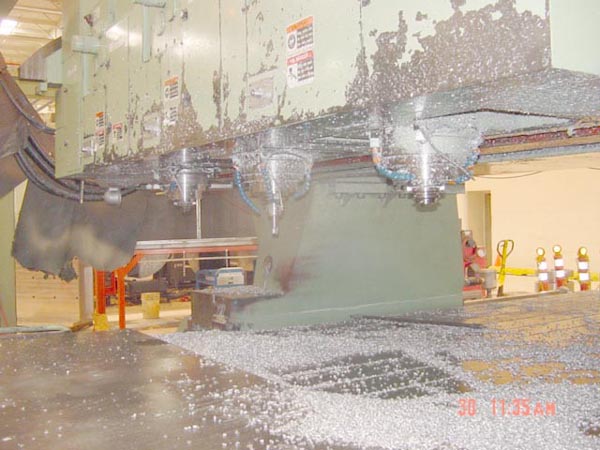

5-Axis Contouring CNC Control, RS-232 Port, (3) 40HP 7000 RPM Spindles
on each Gantry, Heavy Duty CAT-50 Taper Spindles, Power Draw Bars,
Hardened Ways, Coolant System.

CATALOGUE SPECIFICATIONS:



Table Size.............................................. 120" x 120'
Gantry Travel on Bed (X-Axis)........................... 1164" Each
Cross Travel (Y-Axis) .................................. 120"
Vertical Travel (Z-Axis) ............................... 32"
Spindle Tilt (A-Axis) .................................. +/- 25 Deg
Spindle Carrier Tilt (B-Axis) .......................... +/- 25 Deg
Distance Between Spindles............................... 40"
Distance Work Surface to Spindle Nose Minimum........... 4"
Distance Work Surface to Spindle Nose Maximum........... 36"
Spindle Horsepower...................................... 40 HP
Spindle Speed Range..................................... 20-7000 RPM
Spindle Taper .......................................... #50 Taper
Electrics .............................................. 460/3/60
Approximate Floorspace Dimensions ...................... 1600" x 180"
Approximate Machine Height ............................. 208"
Approximate Machine Weight ............................. 180,000 LBS



CONDITION: Appears to be in Excellent Condition! From A Prestigious
           Aerospace Company!
