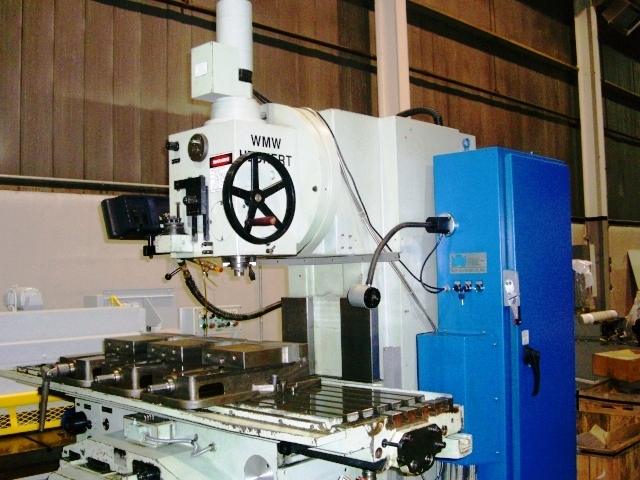

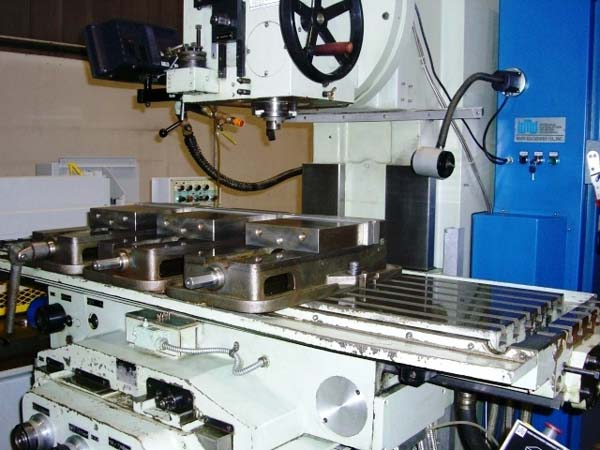

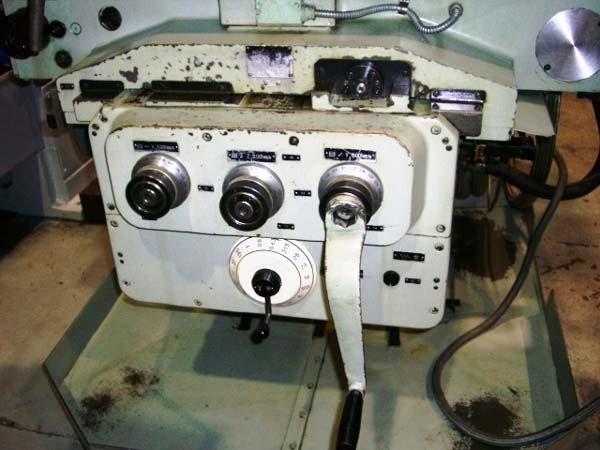

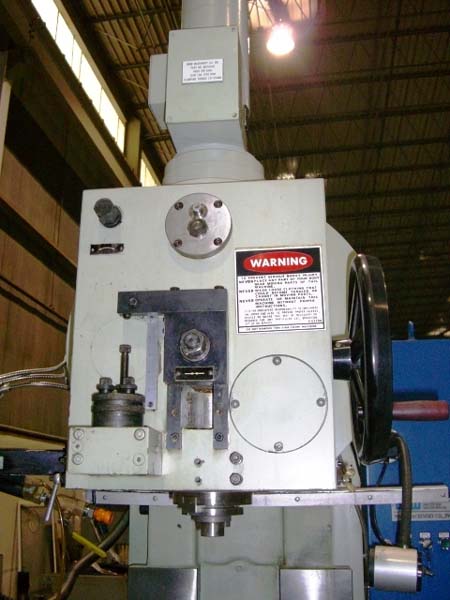

WMW HECKERT MODEL FSS F450x1800 HEAVY DUTY VERTICAL MILL

Serial No. 3344198/122                   New 2001

EQUIPPED WITH

Acu-Rite 3-Axis DRO, Flood Coolant System, Inch Calibrations, Milling Safety Guard, X-Axis Guideway Covers, Automatic Lubrication System, Electromagnetic Reversing Clutch Drives, Automatic Hydraulic Backlash Eliminatory, Hardened Square Ways, Cross and Vertical Counterways Lines With Anti-Friction Material.  Emergency Stop Button, Pushbutton Pendant Control of 3 Axes.  Adjustable Cam Controls, (3) 8" Kurt Vises.

SPECIFICATIONS

Table Size                      17.71" x 71" (450mm x 1800mm)

No. Of T-Slots                  6

Travels

      X                         52" (1320mm)

      Y                         14" (356mm)

      Z                         24.75" (629mm)

Max Load On Table               3,300 Lbs (1,496 KG)

Spindle Speeds (18)             45-2240 RPM

Taper Size                      50

Max. Workpiece Weight           3,300 Lbs (1,500 Kgs)

Approx Weight                   11,000 Lbs (5,000 Kgs)
