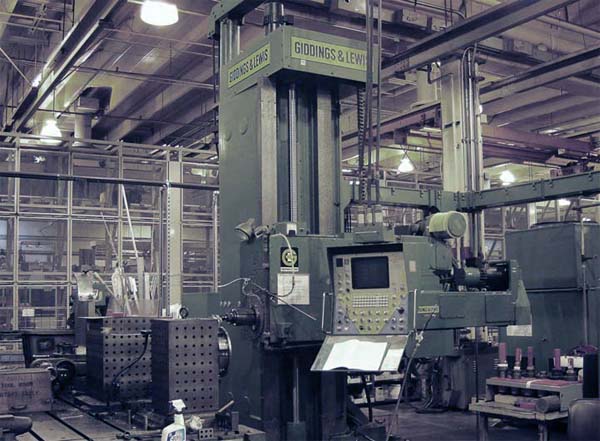

5" GIDDINGS & LEWIS CNC TABLE TYPE HORIZONTAL BORING MILL
Model PC50 CNC, New 1982, S/N 445
Stock# K13010
EQUIPPED WITH:

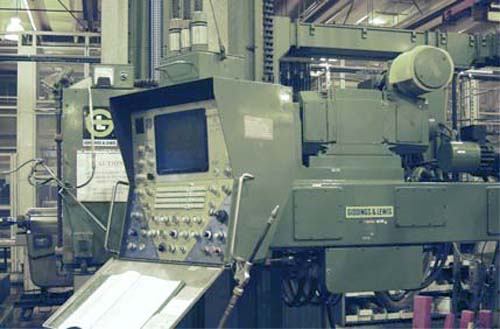

Giddings & Lewis Numeripath 800M CNC Pendant Control w/CRT (32K),
72" Optional Vertical Travel, Ballscrews, Electric Servo Drives,
Power
Drawbar, Flood Coolant System, 24" Rotary Table, Angle Plates,
Tooling,
High Speed Spindle Adapter, Tooling
CATALOGUE SPECIFICATIONS:
Spindle Diameter................................... 5"
Table Size......................................... 60" x 122"
Table Load Capacity................................ 30,000 LBS
Table Cross Travel (X-Axis)........................ 120"
Spindle-Head Vertical Travel (Y-Axis).............. 72"
Spindle (Quill) Travel (Z-Axis).................... 36"
Saddle Longitudinal Travel (W-Axis)................ 18"
Spindle Taper...................................... #50 ANS
Spindle Horsepower................................. 30 HP
Spindle Speeds (Infinite in 4 ranges).............. 25 to 1120 RPM
Spindle Feeds Range................................ .0001 to .9999
IPR
Milling Feeds (All Axes)........................... .012 to 120 IPM
Power Rapid Traverse (X & Y Axes).................. 180 IPM
Power Rapid Traverse (Z & W Axes).................. 120 IPM
Electrics.......................................... 460/3/50
Approximate Machine Dimensions..................... 247" x 175"
Approximate Machine Height......................... 167"
Approximate Machine Weight......................... 58,000 LBS
CONDITION: Machine Appears to be in Excellent Condition ! !
