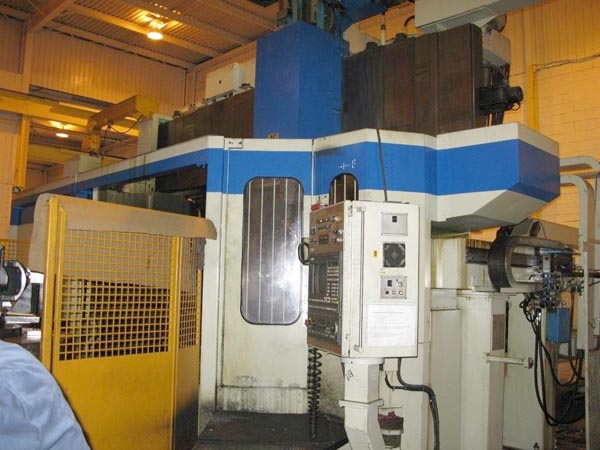

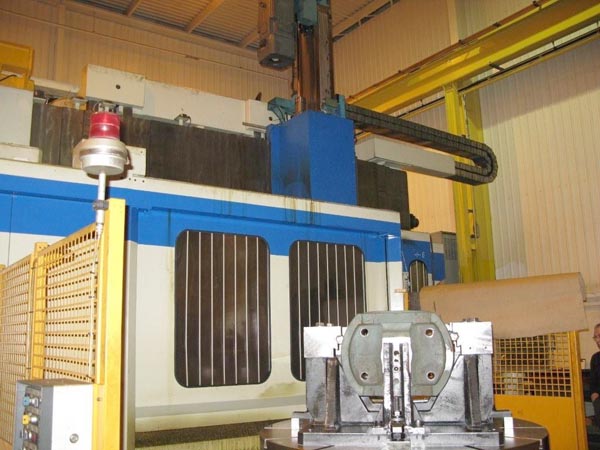

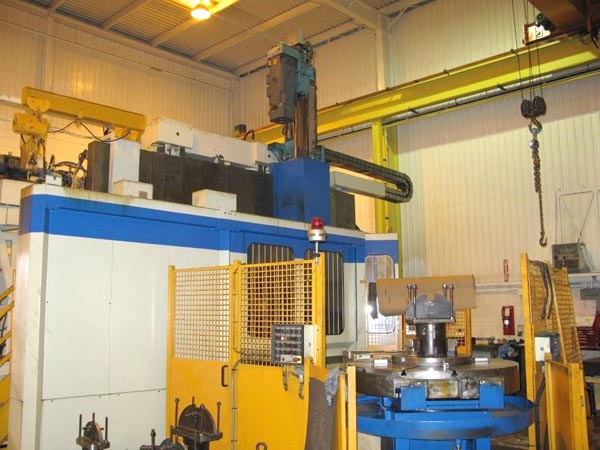

50" CARNAGHI CNC VERTICAL TURNING/MILLING CENTER
Model AC-12, New 1991, Stock# K13011
EQUIPPED WITH:

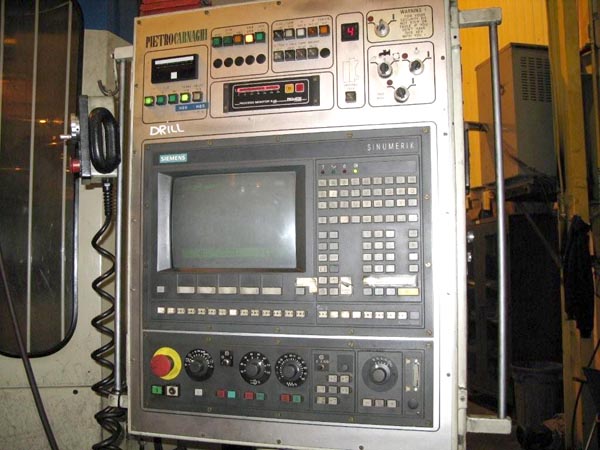

Siemens 880T CNC Control, Multiple Part Program Storage,

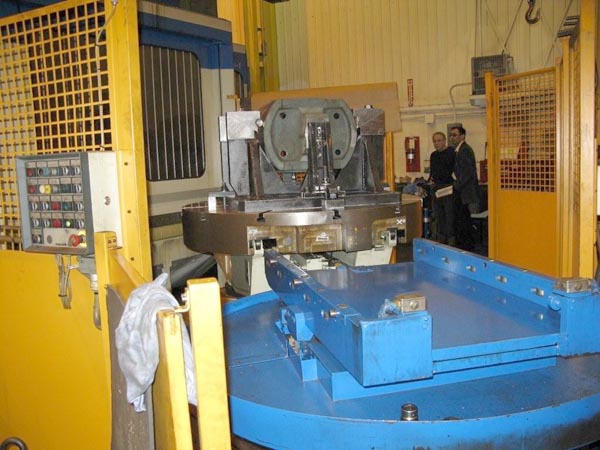

RS-232 Port, (2) 50" T-Slotted Pallets, Heavy Duty 28 HP #50 Taper
Live
Tool Spindle, Full Contouring C-Axis Table, Automatic Tool Changer,
Heavy Duty 75 HP Spindle Drive, Splash Enclosure, Chip Conveyor and
Coolant System.
SPECIFICATION:
Table Diameter............................................. 50"
Maximum Milling/Turning Diameter........................... 63"
Maximum Height Under Ram................................... 59"
Ram-Head Travel Right of Center............................ 3"
Ram-Head Travel Left of Center............................. 68.8"
Ram-Head Travel Vertical................................... 50"
Vertical Travel of the Cross Rail.......................... 23.6"
Table Speeds (RPM) ........................................ 2.4 to
333+
Tool Spindle Speeds (RPM).................................. 8 to
1000
Automatic Tool Changer Capacity............................ 24 Tools
Live Machining Spindle .................................... 28.6 HP
Main Spindle Motor Drive .................................. 75
HP
Approximate Machine Weight ................................ 100,000
lbs
CONDITION: Machine is from a Large Aerospace Company and Appears to
be
in Excellent Condition !
